Inspection solution

Flexible Feeding & Robot Loading

Build flexible small-part loading cells with F/FL/FS feeder trays, optional storage bins, vision positioning and DTA robot pickup routes.

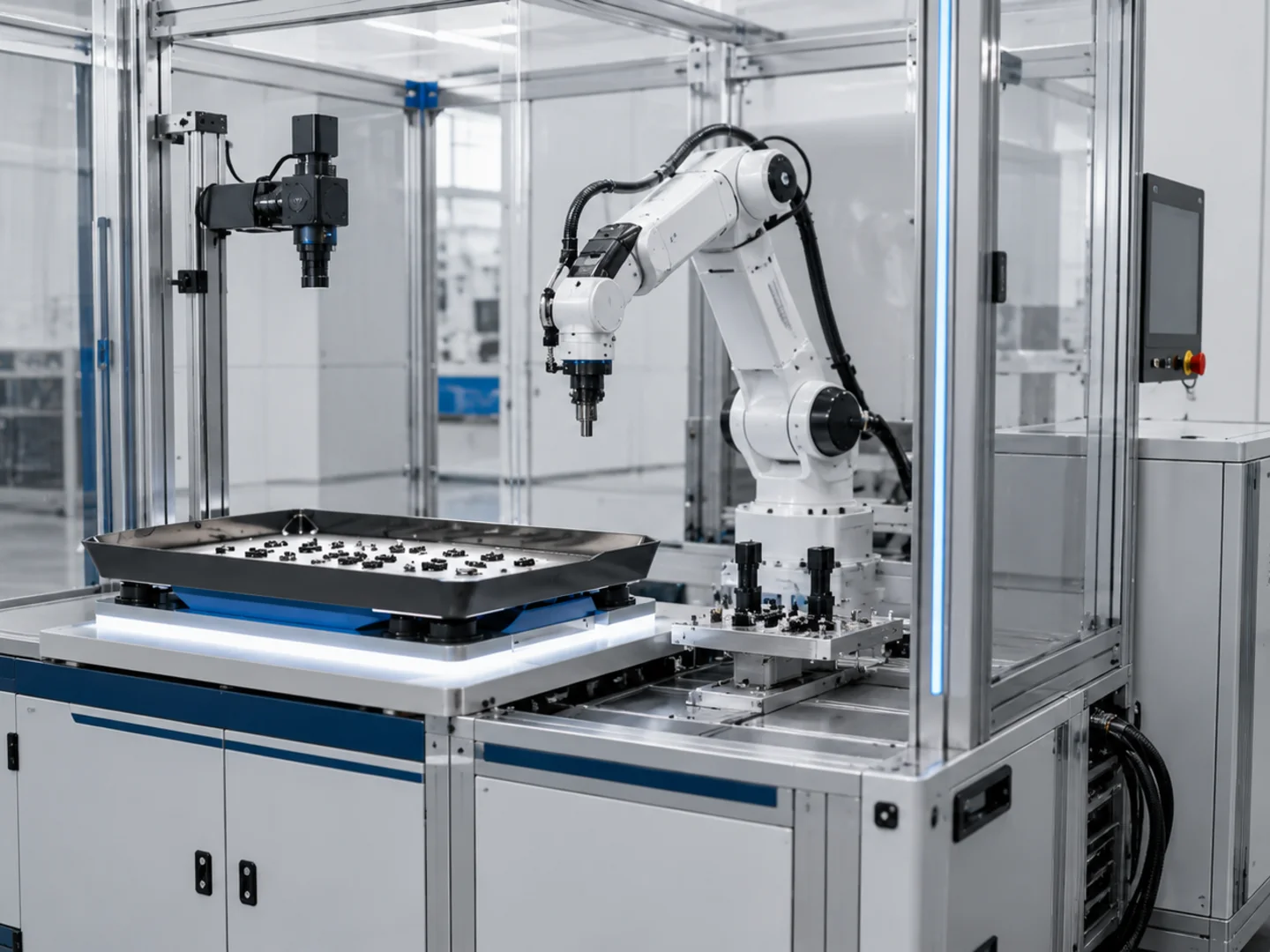

DEYI flexible feeding workstation with feeder, vision camera and robot loading cell

Production pain points

Problems this route should solve.

Bowl feeders are too rigid for frequent SKU changes
Small parts overlap, stick, roll or arrive in unstable orientations
Robot pickup needs repeatable coordinates without custom tooling for every part
Shortage detection, storage-bin replenishment and controller I/O must be planned before commissioning

Recommended components

Start with these product families.

Solution RFQ

Planning a flexible feeding & robot loading project?

Send part images, line speed, inspection tolerance and current failure mode. We will map it to a component route.

Request engineering RFQ

Solution FAQ

Questions to answer before building a flexible feeding & robot loading route.

Ask engineering

What should be confirmed first for a flexible feeding & robot loading project?

Confirm the part surface, target defect or measurement, tolerance, conveyor or robot motion, available mounting space, reject method and any current failure mode before selecting hardware.

What information should I send before requesting a machine vision quote?

Send part photos or drawings, target defect or measurement goal, field of view, working distance, line speed, accuracy target, lighting limits and any current camera, lens, light, barcode reader or competitor model.

Do I need a 2D or 3D machine vision system?

Use 2D when contrast, edges, labels or position are enough to judge the part. Use 3D when height, profile, gap, volume, weld shape or surface geometry decides pass or fail.

How should I choose machine vision lighting?

Start from the defect and material surface instead of the camera model. Backlight helps edge measurement, coaxial and dome lighting help reflective surfaces, and bar or ring lighting often works for general presence and defect checks.

Can Deyi Vision support projects that reference Keyence, Cognex or other brand routes?

Deyi Vision is not affiliated with those brands. As a factory-direct machine vision source, we can map the inspection goal, model reference and production route to a component-level camera, lens, light, reader or smart-camera selection.
