When to review machine vision lenses.
The Machine Vision Lenses route fits precision measurement, part edge inspection, gauge-style measurement projects. Confirm object size and sensor size together.
Product route

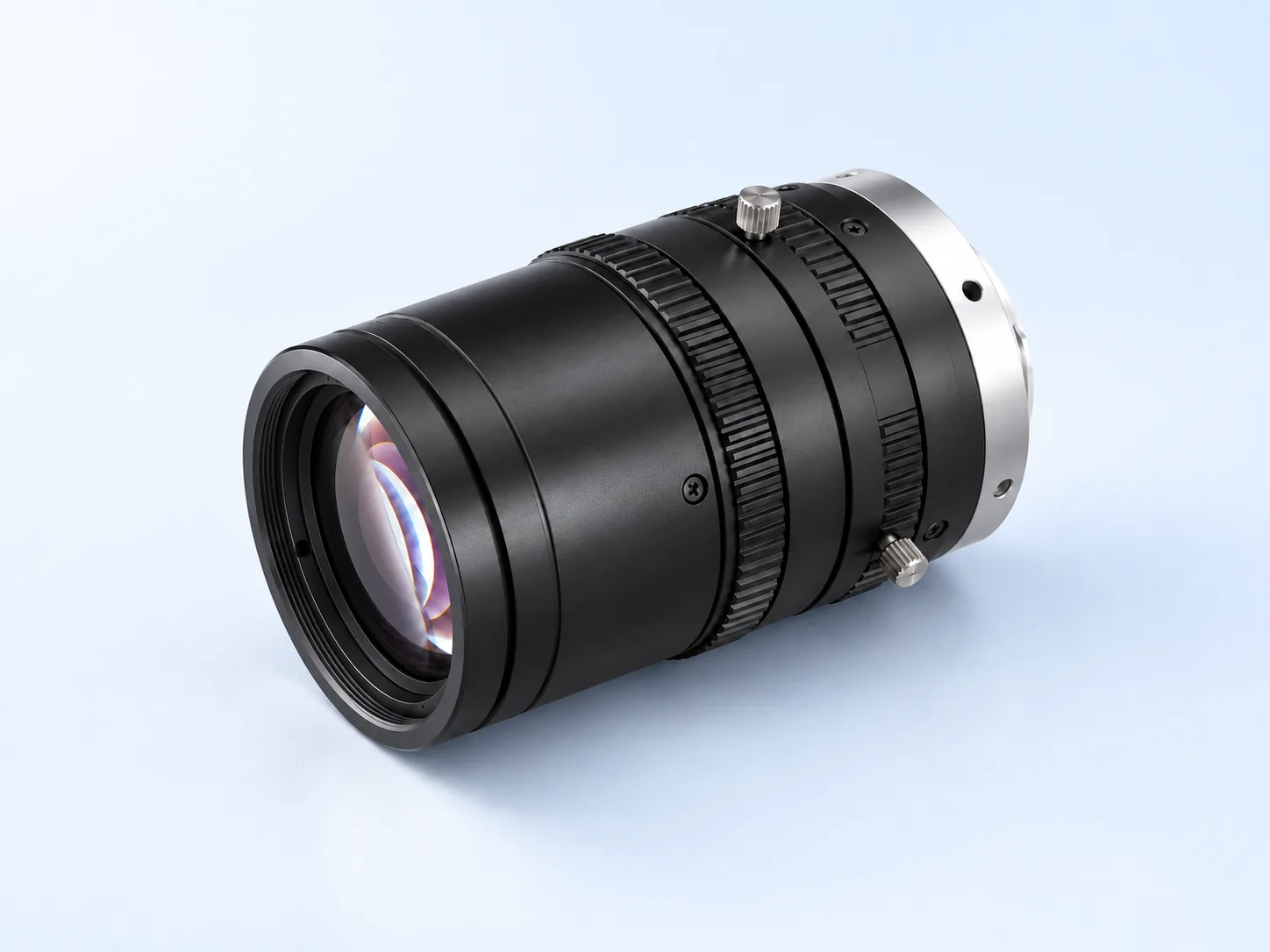

Machine Vision Lenses
FA lenses, C-mount lenses, line-scan lenses, large-format lenses, low-distortion lenses, telecentric lenses and custom optics for inspection cells.
The project needs stable FOV, edge clarity, low distortion or repeatable measurementCalculate sensor size, object size, WD, focal length, pixel size and tolerance firstStandard lens for general inspection
Confirm these before model selection.
FA / line scan, Telecentric optics, Custom lens route are only the starting point. Also confirm field of view, working distance, line speed, interface, trigger timing and mounting limits.
Send evidence before asking for a part number.
Share sample images, good and bad parts, current reference model, target defect, tolerance, production speed and available fixture space.
Where this route stops working.
- Do not lock a model before sample images, line speed and target tolerance are available.
- Do not treat the component as a standalone purchase when lighting, optics, fixture or trigger constraints are still unknown.
- Do not assume a reference brand or catalog model proves production-line acceptance.
Send route evidence before asking for a final part number.
- Part photos or short line video
- Good and bad sample examples
- Target feature size or tolerance
- Field of view and working distance
- Line speed, trigger and interface needs
When this route is a good fit
Machine vision lens choice starts from sensor size, FOV, working distance and distortion; Deyi reviews C-mount, line-scan, low-distortion and telecentric routes.
Use this route when the project matches these constraints.
- Use when
- The project needs stable FOV, edge clarity, low distortion or repeatable measurement.
- Core numbers
- Calculate sensor size, object size, WD, focal length, pixel size and tolerance first.
- Route split
- Standard lens for general inspection; telecentric or low-distortion route for measurement.
Do not quote this route before these checks are clear.
- Do not select focal length without object size and sensor size.
- Do not use regular lenses for tight measurement if perspective error changes the result.
- Do not ignore lighting geometry because lens choice can block usable light angles.
Swipe horizontally to compare buyer situation, inspection constraint, recommended route and what to send.
| Buyer situation | Inspection constraint | Recommended route | What to send |
|---|---|---|---|
| FA/C-mount lens review matched to sensor size and working distance | Lens hardware RFQ | FA/C-mount lens route matched to sensor size and working distance. | Send object size, sensor format, WD, tolerance and distortion limit. |
| Lens-camera pairing before selecting focal length | Camera-lens pairing review | Lens-camera pairing before selecting focal length. | Confirm sensor diagonal, target FOV, resolution and mount type. |
| C-mount review for common industrial area-scan cameras | C-mount lens review | C-mount route for common industrial area-scan cameras. | Send camera model, pixel size, sensor size and mounting clearance. |
| Lens review for FOV, WD, distortion and lighting geometry | Lens selection workflow | Lens route for FOV, WD, distortion and lighting geometry. | Provide measurement tolerance and whether perspective error is acceptable. |
How buyers should compare this route
Build the product route around the inspection target, not the catalog model.
Use machine vision lenses when the inspection evidence matches the route.
Machine Vision Lenses should be evaluated when the project is tied to precision measurement, part edge inspection, gauge-style measurement. A useful review starts from the part behavior, target feature, motion condition and current failure mode, then maps those limits to the right component family instead of forcing one catalog model.
- Precision measurement
- Part edge inspection
- Gauge-style measurement
Compare constraints, not only specifications.
Use machine vision lenses selection as a system decision: lens, lighting, fixture, trigger, interface and software all affect repeatability. The safest shortlist is created only after sample images, line speed and output constraints are reviewed together.
- Confirm object size and sensor size together.
- Use telecentric optics when perspective error is unacceptable.
- Reserve enough working distance for fixture and lighting.
What engineering should confirm first
Four checks before locking the machine vision lenses route.
This workflow keeps the RFQ focused on the real inspection constraint and reduces the risk of buying a component that works on paper but fails under production lighting, motion or fixture variation.
- Define the inspection target State the defect, code, edge, height, presence check or measurement result that must be accepted or rejected.
- Lock optical and mechanical constraints Confirm field of view, working distance, mounting space, part motion, fixture stability and available light geometry.
- Match the component route Review machine vision lenses with related lenses, lighting, controllers, I/O and software rather than selecting one part number in isolation.
- Validate with samples Use good parts, bad parts and edge-case samples to confirm contrast, repeatability, read rate or measurement stability before purchase.
Reviewed selection basis
Review model data, buyer constraints and acceptance risk before RFQ lock.
Manufacturer seriesMachine vision lens series Selection basisCHIOPT optical supply route Model routeDeyi-supported model route Buyer reference modelCognex / Moritex lens reference
Model parameter matrix
Model-level parameters reviewed against manufacturer specs before RFQ lock.
1/1.8 inch 5MP FA lens
DY-FA0401C
Reference model: FA0401C · Supplier: CHIOPT
Manufacturer specs reviewed Official PDF Request this route- Focal length
- 4mm
- Sensor size
- 1/1.8 inch
- F.NO
- 2.0-C
- TV distortion
- <0.5%
- MOD
- 0.1m, 0.037X
- Mount
- C-Mount
- Field angle
- 1/1.8 inch: 82.9 x 66.5 deg
- Size / weight
- phi 38.2 x 27.9mm / 58g
- Use this route when a compact wide-angle FA lens is needed for area-scan inspection.
1/1.7 inch 12MP FA lens
DY-C-FA0613A
Reference model: C-FA0613A · Supplier: CHIOPT
Manufacturer specs reviewed Official PDF Request this route- Focal length
- 6mm
- Sensor size
- 1/1.7 inch
- Resolution class
- 12MP, IMX226 fit
- F.NO
- 2.4-16
- TV distortion
- <1.23%
- MOD
- 0.1m, 0.054X
- Mount
- C-Mount
- Size / weight
- phi 29.8 x 37.716mm / 73g
- Higher-resolution route for compact 1.85um-pixel cameras.
2/3 inch 10MP FA lens
DY-FA0810A
Reference model: FA0810A · Supplier: CHIOPT
Manufacturer specs reviewed Official PDF Request this route- Focal length
- 8mm
- Sensor size
- 2/3 inch
- Resolution class
- 10MP
- F.NO
- 2.8-16
- TV distortion
- <0.5%
- MOD
- 0.1m, 0.074X
- Mount
- C-Mount
- Size / weight
- phi 32 x 36.57mm / 50g
- Official 2/3 inch 10MP FA route for higher-resolution area-scan inspection.
Swipe horizontally to compare reviewed model parameters. Use the mobile cards above on small screens.
| Parameter | 1/1.8 inch 5MP FA lens DY-FA0401C Reference model: FA0401C · Supplier: CHIOPT Manufacturer specs reviewed Official PDF | 1/1.7 inch 12MP FA lens DY-C-FA0613A Reference model: C-FA0613A · Supplier: CHIOPT Manufacturer specs reviewed Official PDF | 2/3 inch 10MP FA lens DY-FA0810A Reference model: FA0810A · Supplier: CHIOPT Manufacturer specs reviewed Official PDF |
|---|---|---|---|
| Focal length | 4mm | 6mm | 8mm |
| Sensor size | 1/1.8 inch | 1/1.7 inch | 2/3 inch |
| F.NO | 2.0-C | 2.4-16 | 2.8-16 |
| TV distortion | <0.5% | <1.23% | <0.5% |
| MOD | 0.1m, 0.037X | 0.1m, 0.054X | 0.1m, 0.074X |
| Mount | C-Mount | C-Mount | C-Mount |
| Field angle | 1/1.8 inch: 82.9 x 66.5 deg | Confirm during RFQ | Confirm during RFQ |
| Size / weight | phi 38.2 x 27.9mm / 58g | phi 29.8 x 37.716mm / 73g | phi 32 x 36.57mm / 50g |
| Resolution class | Confirm during RFQ | 12MP, IMX226 fit | 10MP |
| RFQ notes |
|
|
|
What changes the route, cost and delivery review.
- Application route
- Precision measurement, Part edge inspection, Gauge-style measurement
- Hardware scope
- FA / line scan, Telecentric optics, Custom lens route
- Buyer reference model
- Cognex / Moritex lens reference
Common use cases
Common reasons product selection goes wrong.
- Choosing by resolution, catalog size or brand reference before defining the inspection target.
- Ignoring lighting, lens, fixture or trigger limits that decide whether the component can repeat on the production line.
- Requesting a quote without good/bad sample images, line speed, target tolerance or the current failure mode.
Evidence that helps engineering reply faster.
Part photos or short line videoGood and bad sample examplesTarget feature size or toleranceField of view and working distanceLine speed, trigger and interface needsCurrent model, competitor reference or failure mode
Related solution routes
Connect this product family to an inspection problem.
Solution
Automated Visual Inspection
Build automated visual inspection systems for defect detection, presence checks, surface inspection, orientation, measurement and repeatable pass/fail output.
SolutionVision Inspection System
Plan a complete vision inspection system for defect checks, presence, measurement, barcode reading and pass/fail output.
SolutionDimension Measurement
Use calibrated lenses, lighting and cameras to stabilize measurement under production conditions.
SolutionRobot Guidance
Vision routes for pickup, positioning, alignment and assembly verification.
Application case briefs
Explore illustrative selection examples for this product family.
Textile and web inspection
Roll-to-Roll Web Defect Inspection
Application brief for continuous web, film, textile or paper defect inspection using line scan cameras and line lighting.
Robot guidanceRobot Guidance Pick and Place Positioning
Application route for robot pick, positioning and assembly guidance using 2D or 3D vision based on part presentation.
Dimension measurementStamped Part Instant Measurement
Application route for fast dimensional checks on stamped, machined or molded parts using instant measuring systems.
Related buying guides
What to check before you quote this route.
Resource
What Is a Telecentric Lens?
Decide when telecentric optics are justified by measurement tolerance, part height variation and fixture repeatability.
ResourceIndustrial Camera Cross-Reference Selector
Translate a Basler, Allied Vision, Baumer, IDS or Teledyne datasheet into the four values that decide whether another camera fits: sensor format, pixel size, interface and shutter.
ResourceMachine Vision Camera Resolution Calculator
Estimate camera resolution from field of view, smallest feature size and measurement tolerance before selecting a sensor.
ResourceIndustrial Camera for Machine Vision
Select industrial cameras for machine vision by sensor size, shutter type, resolution, interface, frame rate and lighting constraints.
ResourceMachine Vision Lens Selection Guide
Select machine vision lenses by field of view, sensor size, working distance, aperture, distortion, resolution and whether the task needs telecentric measurement stability.
ResourceTelecentric Lens vs Regular Lens
Compare telecentric and regular machine vision lenses by perspective error, measurement tolerance, working distance, field of view and budget tradeoff.
ResourceMachine Vision Lighting Types
Compare ring, bar, dome, coaxial, backlight and line lighting types by surface behavior, defect contrast and installation constraints.
ResourceMachine Vision Working Distance Guide
Understand how working distance affects field of view, lens choice, lighting geometry, fixture design and inspection stability.
ResourceLine Scan Camera Lighting Setup
Plan line scan camera lighting by material width, web speed, exposure time, line light geometry, lens field width, encoder synchronization and edge-to-center uniformity.
ResourceLine Scan Camera Price Guide
Understand line scan camera price drivers including sensor length, line rate, interface, lens, line light, encoder, controller and web-inspection scope.
ResourceRoll-to-Roll Film Defect Inspection with Line Scan Cameras
Plan roll-to-roll film defect inspection by web width, line scan camera route, line light uniformity, encoder timing, smallest defect and false reject control.
ResourceTelecentric Lens Basics
Learn what telecentric lenses do, when they improve measurement repeatability and when regular machine vision lenses are enough.
Reference alternatives
Compare this product family against reference-model requirements.
Compare
Opto Engineering Telecentric Lens Alternative
Compare telecentric and macro optics by measurement tolerance, working distance and depth of field before choosing a lens brand.
CompareXIMEA Compact Camera Alternative
Compare compact and embedded camera requirements by size envelope, interface, power budget and host platform.
CompareVision & Control Optics and Sensor Alternative
Compare combined optics, lighting and sensor routes when the inspection task is fixed and the geometry is tight.
CompareKeyence Vision System Alternative
A neutral selection guide for teams comparing Keyence-style integrated vision systems with component-level inspection routes.
CompareBasler Camera Selection
Use Basler camera reference demand to guide area scan, line scan, interface, resolution and lens decisions.
CompareOPT Lighting Alternative
Select machine vision lighting by part surface, defect type, contrast method and mechanical installation constraints.
CompareHikrobot Machine Vision Alternative
Review Hikrobot-style camera, lens, lighting and barcode requirements against a factory-direct component route.
CompareTeledyne DALSA Camera Selection
Translate Teledyne DALSA-style area scan and line scan requirements into practical machine vision camera choices.
CompareFLIR Industrial Camera Alternative
Compare FLIR-style industrial camera needs with Deyi Vision camera, lens and lighting selection constraints.
CompareAllied Vision Camera Selection
Use Allied Vision camera references to frame sensor size, interface, frame rate and machine vision application needs.
CompareIDS Imaging Camera Selection
Map IDS Imaging-style camera searches to inspection goals, optics, lighting and factory-direct RFQ inputs.
CompareBaumer Vision Camera Alternative
Review Baumer-style vision camera requirements before selecting resolution, interface, lens and lighting route.
CompareMaxxVision Component Alternative
Turn a distributor shortlist into camera, lens, lighting and interface requirements a factory can quote against directly.
CompareStemmer Imaging Component Route
Use Stemmer-style component sourcing requirements to plan cameras, lenses, lights and integration-ready RFQ details.
Product RFQ
Need help selecting machine vision lenses?
Send working distance, target size, speed, defect type, competitor model or sample images before locking a part number.
Request engineering RFQProduct FAQ
Common questions before selecting machine vision lenses.
How do I confirm whether machine vision lenses fit my project?
Start with the inspection goal, field of view, working distance, line speed and target tolerance. Then match machine vision lenses with lens, lighting, mounting and I/O requirements instead of choosing by part number alone.
What information improves machine vision lenses selection accuracy?
Send good and bad sample images, target feature size, field of view, working distance, speed, trigger method, interface requirement and any current reference model. That lets engineering confirm whether machine vision lens is the right route or whether another product family is safer.
When should I avoid selecting machine vision lenses by catalog specs only?
Avoid catalog-only selection when the part is reflective, moving quickly, tolerance-sensitive, space-limited or already failing under manual inspection. In those cases, lighting, lens, fixture and software behavior often matter as much as the component specification.
What information should I send before requesting a machine vision quote?
Send part photos or drawings, target defect or measurement goal, field of view, working distance, line speed, accuracy target, lighting limits and any current camera, lens, light, barcode reader or competitor model.
Do I need a 2D or 3D machine vision system?
Use 2D when contrast, edges, labels or position are enough to judge the part. Use 3D when height, profile, gap, volume, weld shape or surface geometry decides pass or fail.
How should I choose machine vision lighting?
Start from the defect and material surface instead of the camera model. Backlight helps edge measurement, coaxial and dome lighting help reflective surfaces, and bar or ring lighting often works for general presence and defect checks.
