When to review machine vision lighting.
The Machine Vision Lighting route fits surface defect contrast, edge measurement, reflective part inspection projects. Start from material and defect type.
Product route
Machine Vision Lighting
Ring, bar, coaxial, dome, backlight, dark-field and line-light routes matched to defect contrast, edge clarity and part surface behavior.
The defect exists but is not stable under ambient or built-in camera lightingReview working distance, light angle, exposure, wavelength, controller timing and fixture envelopeBacklight for silhouette, coaxial/dome for reflective surfaces, bar/dark-field for scratches
Confirm these before model selection.
Ring / bar / dome, Coaxial / backlight, Controller-ready are only the starting point. Also confirm field of view, working distance, line speed, interface, trigger timing and mounting limits.
Suppressing a bright reflection is useful only if the defect remains visible. Compare unpolarized and cross-polarized images on the same scratched and good surfaces.Run a polarization A/B test for glare
Send evidence before asking for a part number.
Share sample images, good and bad parts, current reference model, target defect, tolerance, production speed and available fixture space.
Where this route stops working.
- Do not quote lighting before sample surface, defect contrast and reflection behavior are reviewed.
- Do not use this route when ambient light, part pose or mounting space cannot be controlled.
- Do not assume the light type solves the project without camera angle and working-distance constraints.
Send route evidence before asking for a final part number.
- Part photos or short line video
- Good and bad sample examples
- Target feature size or tolerance
- Field of view and working distance
- Line speed, trigger and interface needs
When this route is a good fit
Lighting decides image contrast first: Deyi maps ring, bar, coaxial, dome, backlight and dark-field routes against 6 surface/defect variables.
Use this route when the project matches these constraints.
- Use when
- The defect exists but is not stable under ambient or built-in camera lighting.
- Core numbers
- Review working distance, light angle, exposure, wavelength, controller timing and fixture envelope.
- Route split
- Backlight for silhouette, coaxial/dome for reflective surfaces, bar/dark-field for scratches.
Do not quote this route before these checks are clear.
- Do not buy a brighter light to solve a geometry problem.
- Do not use ring light by default on reflective, curved or transparent parts.
- Do not quote lighting without sample images from good, bad and edge-case parts.
Swipe horizontally to compare buyer situation, inspection constraint, recommended route and what to send.
| Buyer situation | Inspection constraint | Recommended route | What to send |
|---|---|---|---|
| Lighting-first selection before camera model lock | Unstable image contrast review | Lighting-first selection before camera model lock. | Send material, defect type, surface reflectivity and working distance. |
| LED ring, bar, dome, coaxial, backlight and line-light routes | LED light type and controller review | LED ring, bar, dome, coaxial, backlight and line-light routes. | Confirm color, strobe need, controller route and mounting space. |
| General front-light review for presence, label and moderate texture checks | General front-light inspection review | General front-light route for presence, label and moderate texture checks. | Send sample images showing glare, shadow and target feature size. |
| Low-angle or dark-field review for scratches, edges and raised defects | Scratch and edge-contrast review | Low-angle or dark-field route for scratches, edges and raised defects. | Provide defect direction, surface finish and line-speed condition. |
How buyers should compare this route
Build the product route around the inspection target, not the catalog model.
Use machine vision lighting when the inspection evidence matches the route.
Machine Vision Lighting should be evaluated when the project is tied to surface defect contrast, edge measurement, reflective part inspection. A useful review starts from the part behavior, target feature, motion condition and current failure mode, then maps those limits to the right component family instead of forcing one catalog model.
- Surface defect contrast
- Edge measurement
- Reflective part inspection
Compare constraints, not only specifications.
Use machine vision lighting selection as a system decision: lens, lighting, fixture, trigger, interface and software all affect repeatability. The safest shortlist is created only after sample images, line speed and output constraints are reviewed together.
- Start from material and defect type.
- Use backlight for silhouette measurement.
- Use coaxial or dome routes for reflective surfaces.
What engineering should confirm first
Four checks before locking the machine vision lighting route.
This workflow keeps the RFQ focused on the real inspection constraint and reduces the risk of buying a component that works on paper but fails under production lighting, motion or fixture variation.
- Define the inspection target State the defect, code, edge, height, presence check or measurement result that must be accepted or rejected.
- Lock optical and mechanical constraints Confirm field of view, working distance, mounting space, part motion, fixture stability and available light geometry.
- Match the component route Review machine vision lighting with related lenses, lighting, controllers, I/O and software rather than selecting one part number in isolation.
- Validate with samples Use good parts, bad parts and edge-case samples to confirm contrast, repeatability, read rate or measurement stability before purchase.
Reviewed selection basis
Review model data, buyer constraints and acceptance risk before RFQ lock.
Manufacturer seriesMachine vision lighting series Selection basisKST / CSTMV lighting supply route Model routeDeyi-supported model route Buyer reference modelCCS / OPT
Model parameter matrix
Model-level parameters reviewed against manufacturer specs before RFQ lock.

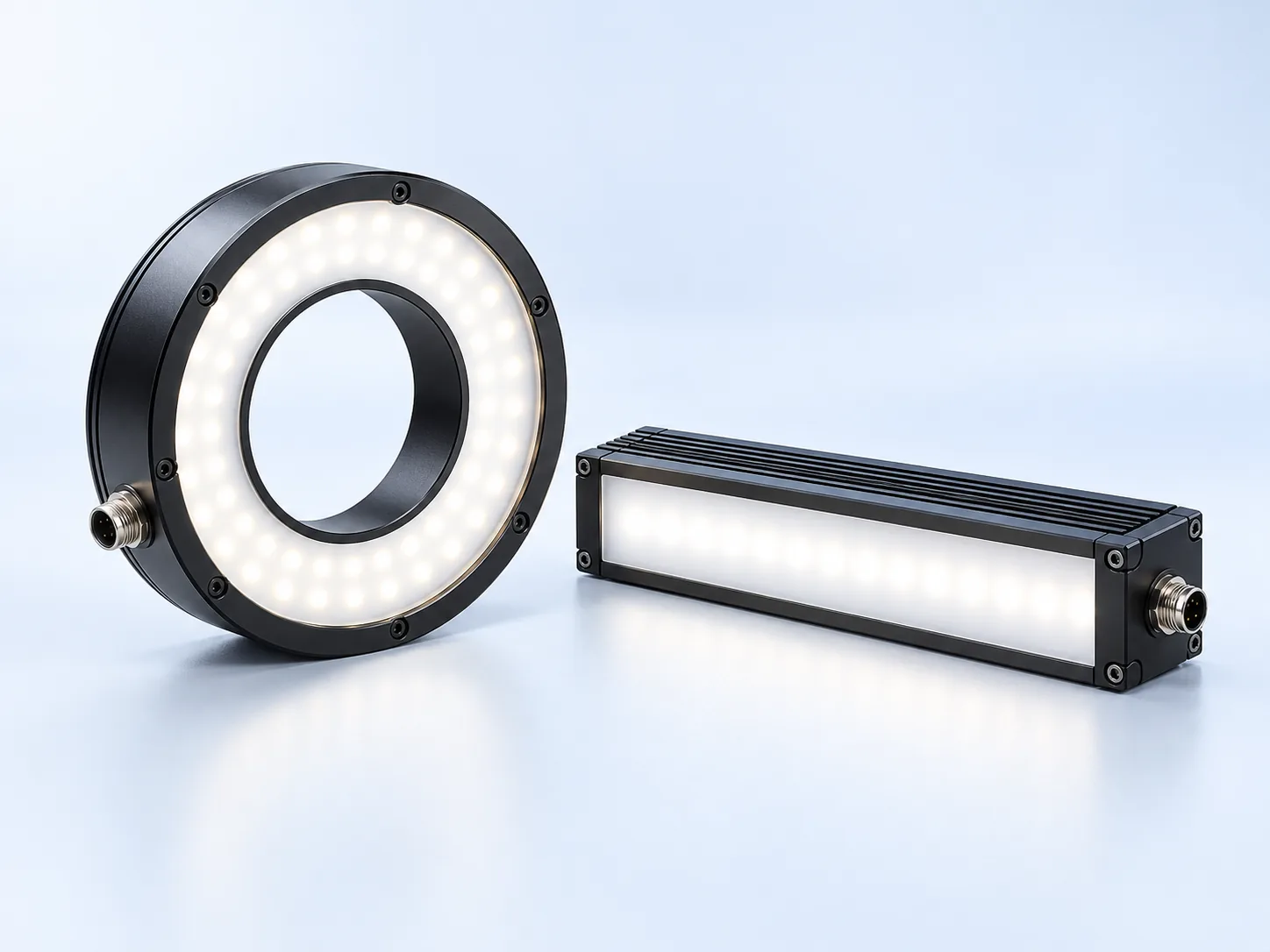

Ring light
DY-RS3475-W
Reference model: CST-RS3475-W · Supplier: CSTMV / KST
Manufacturer specs reviewed Official spec page Request this route- Color
- White
- Power
- 2W
- Light opening
- 34mm outer / 10mm inner / 19mm height
- Color temperature
- 6000-10000K
- Use environment
- 0-40 C
- Storage environment
- -20-60 C, 20-85%RH non-condensing
- Rated life
- White 30000h @25 C to 50%; red 60000h @25 C to 50%
- Warranty
- 1 year
- Deyi route code keeps the functional model route while final labeling and availability are confirmed during RFQ.
Flat back light
DY-HFS200150-W
Reference model: CST-HFS200150-W · Supplier: CSTMV / KST
Manufacturer specs reviewed Official spec page Request this route- Color
- White
- Power
- 25W
- Light area
- 200 x 150mm class
- Color temperature
- 6000-6500K
- Use environment
- 0-40 C
- Storage environment
- -20-60 C, 20-85%RH non-condensing
- Rated life
- White 30000h @25 C to 50%
- Warranty
- 1 year
- Backlight route for silhouette, contour and liquid/foreign-object inspection work.
Dome shadowless light
DY-DS500-W
Reference model: CST-DS500-W · Supplier: CSTMV / KST
Manufacturer specs reviewed Official spec page Request this route- Color
- White
- Power
- 242W
- Dome class
- 500mm series
- Color temperature
- 6000-6500K
- Use environment
- 0-40 C
- Storage environment
- -20-60 C, 20-85%RH non-condensing
- Rated life
- White 30000h @25 C to 50%
- Warranty
- 1 year
- Mapped as the reflective-surface route for glare reduction and broad shadow control.
Swipe horizontally to compare reviewed model parameters. Use the mobile cards above on small screens.
| Parameter | Ring light DY-RS3475-W Reference model: CST-RS3475-W · Supplier: CSTMV / KST Manufacturer specs reviewed Official spec page | Flat back light DY-HFS200150-W Reference model: CST-HFS200150-W · Supplier: CSTMV / KST Manufacturer specs reviewed Official spec page | Dome shadowless light DY-DS500-W Reference model: CST-DS500-W · Supplier: CSTMV / KST Manufacturer specs reviewed Official spec page |
|---|---|---|---|
| Color | White | White | White |
| Power | 2W | 25W | 242W |
| Light opening | 34mm outer / 10mm inner / 19mm height | Confirm during RFQ | Confirm during RFQ |
| Color temperature | 6000-10000K | 6000-6500K | 6000-6500K |
| Use environment | 0-40 C | 0-40 C | 0-40 C |
| Storage environment | -20-60 C, 20-85%RH non-condensing | -20-60 C, 20-85%RH non-condensing | -20-60 C, 20-85%RH non-condensing |
| Rated life | White 30000h @25 C to 50%; red 60000h @25 C to 50% | White 30000h @25 C to 50% | White 30000h @25 C to 50% |
| Warranty | 1 year | 1 year | 1 year |
| Light area | Confirm during RFQ | 200 x 150mm class | Confirm during RFQ |
| Dome class | Confirm during RFQ | Confirm during RFQ | 500mm series |
| RFQ notes |
|
|
|
What changes the route, cost and delivery review.
- Application route
- Surface defect contrast, Edge measurement, Reflective part inspection
- Hardware scope
- Ring / bar / dome, Coaxial / backlight, Controller-ready
- Buyer reference model
- CCS / OPT
Common use cases
Common reasons product selection goes wrong.
- Choosing by resolution, catalog size or brand reference before defining the inspection target.
- Ignoring lighting, lens, fixture or trigger limits that decide whether the component can repeat on the production line.
- Requesting a quote without good/bad sample images, line speed, target tolerance or the current failure mode.
Evidence that helps engineering reply faster.
Part photos or short line videoGood and bad sample examplesTarget feature size or toleranceField of view and working distanceLine speed, trigger and interface needsCurrent model, competitor reference or failure mode
