Product route

Flexible Feeders & Workstations

DEYI flexible feeders cover 18 F/FL/FS/DTA routes for 0.1-100mm parts, F-series trays from 71 x 111mm to 341 x 448mm, and DTA repeatability of +/-0.15mm.

SKU changes, small loose parts or robot pickup make fixed bowl tooling too rigidReview 0F for main ladder, FL for economy, FS for full-view pickup, DTA for integrated workstation
Send model RFQ Compare models

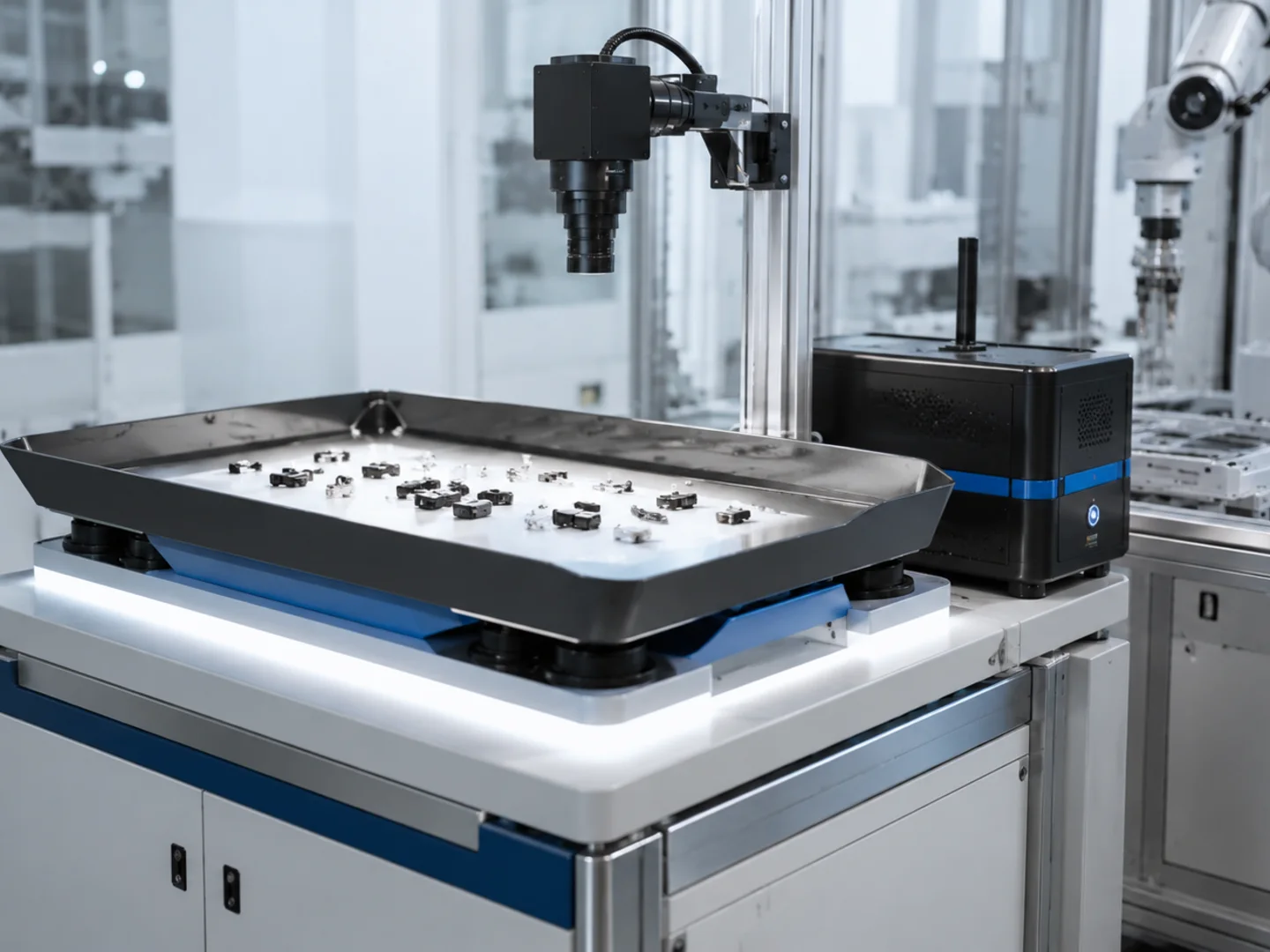

Flexible Feeders & Workstations product photo
Best-fit route

When to review flexible feeders & workstations.

The Flexible Feeders & Workstations route fits 0.1-100mm loose-part singulation, robot pick-and-place feeding, multi-sku flexible loading, electronics connector and precision part feeding projects. Choose F selection, FL economy or FS full-view series by part size, tray area, machine space and pickup field of view.

Key parameters

Confirm these before model selection.

F / FL / FS feeder series, 0.1-100mm part range, DTA robot workstation are only the starting point. Also confirm field of view, working distance, line speed, interface, trigger timing and mounting limits.

Evidence to prepare

Send evidence before asking for a part number.

Share sample images, good and bad parts, current reference model, target defect, tolerance, production speed and available fixture space.

When not to use this route

Use these limits before locking a model.

  • Do not use this route when part size spread, surface behavior and robot pickup tolerance are unknown.
  • Do not quote the feeder alone before confirming gripper, camera, lighting and cycle-time constraints.
  • Do not assume one feeder fits mixed parts without sample testing and tray-size review.
What engineering should confirm first

Send route evidence before asking for a final part number.

  • Part photos or short line video
  • Good and bad sample examples
  • Target feature size or tolerance
  • Field of view and working distance
  • Line speed, trigger and interface needs

When this route is a good fit

DEYI flexible feeders cover 18 F/FL/FS/DTA routes for 0.1-100mm parts, 71 x 111mm to 341 x 448mm F-series trays and +/-0.15mm DTA repeatability.

Use RFQ checklist
Best-fit signals

Use this route when the project matches these constraints.

Use when
SKU changes, small loose parts or robot pickup make fixed bowl tooling too rigid.
Core numbers
Review 0.1-100mm part range, tray size, cycle time, pickup tolerance, storage bin and I/O.
Route split
F for main ladder, FL for economy, FS for full-view pickup, DTA for integrated workstation.
Selection risks to check

Do not quote this route before these checks are clear.

  • Do not replace every high-speed single-SKU bowl feeder automatically.
  • Do not quote without testing whether parts stick, roll, overlap or scratch in the tray.
  • Do not omit robot handoff, gripper and communication requirements from the feeder RFQ.

Swipe horizontally to compare buyer situation, inspection constraint, recommended route and what to send.

Buyer situation Inspection constraint Recommended route What to send
F/FL/FS feeder selection by tray size, part behavior and pickup field Flexible feeder RFQ F/FL/FS feeder selection by tray size, part behavior and pickup field. Send part size, weight, material, sticking/rolling behavior and target cycle time.
Feeder plus vision positioning and robot handoff review Robot loading project Feeder plus vision positioning and robot handoff route. Confirm robot brand, gripper, pickup tolerance and communication protocol.
Flexible feeder review for SKU changes and loose small parts Bowl feeder replacement review Flexible feeder route for SKU changes and loose small parts. List SKU count, changeover frequency, orientation target and throughput need.
3-axis vibration review for spreading and singulating loose parts 3-axis vibration review 3-axis vibration route for spreading and singulating loose parts. Provide tray depth, tray material need and camera field requirement.

How buyers should compare this route

Build the product route around the inspection target, not the catalog model.

Open RFQ checklist
When this route is a good fit

Use flexible feeders & workstations when the inspection evidence matches the route.

Flexible Feeders & Workstations should be evaluated when the project is tied to 0.1-100mm loose-part singulation, robot pick-and-place feeding, multi-sku flexible loading, electronics connector and precision part feeding. A useful review starts from the part behavior, target feature, motion condition and current failure mode, then maps those limits to the right component family instead of forcing one catalog model.

  • 0.1-100mm loose-part singulation
  • Robot pick-and-place feeding
  • Multi-SKU flexible loading
  • Electronics connector and precision part feeding
How buyers should compare this route

Compare constraints, not only specifications.

Use flexible feeders & workstations selection as a system decision: lens, lighting, fixture, trigger, interface and software all affect repeatability. The safest shortlist is created only after sample images, line speed and output constraints are reviewed together.

  • Choose F selection, FL economy or FS full-view series by part size, tray area, machine space and pickup field of view.
  • Match tray material and structure early: POM, ESD POM, Teflon, flat-bottom, grid and profile trays solve different sticking, rolling and positioning problems.
  • Use DTA parallel feeding workstations when the project needs feeder, storage bin, vision, controller, robot motion and touch-panel operation as one integrated cell.

What engineering should confirm first

Four checks before locking the flexible feeders & workstations route.

This workflow keeps the RFQ focused on the real inspection constraint and reduces the risk of buying a component that works on paper but fails under production lighting, motion or fixture variation.

  1. Define the inspection target State the defect, code, edge, height, presence check or measurement result that must be accepted or rejected.
  2. Lock optical and mechanical constraints Confirm field of view, working distance, mounting space, part motion, fixture stability and available light geometry.
  3. Match the component route Review flexible feeders & workstations with related lenses, lighting, controllers, I/O and software rather than selecting one part number in isolation.
  4. Validate with samples Use good parts, bad parts and edge-case samples to confirm contrast, repeatability, read rate or measurement stability before purchase.

Reviewed selection basis

Review model data, buyer constraints and acceptance risk before RFQ lock.

Manufacturer seriesFlexible feeder and loading workstation series Selection basisF / FL / FS feeder and DTA workstation route Model routeDeyi-supported model route Buyer reference modelFlexible feeding automation reference
Flexible Feeders & Workstations engineering product view 1Flexible Feeders & Workstations engineering product view 2Flexible Feeders & Workstations engineering product view 3Flexible Feeders & Workstations engineering product view 4Flexible Feeders & Workstations engineering product view 5Flexible Feeders & Workstations engineering product view 6

Model parameter matrix

Model-level parameters reviewed against manufacturer specs before RFQ lock.

Send model RFQ

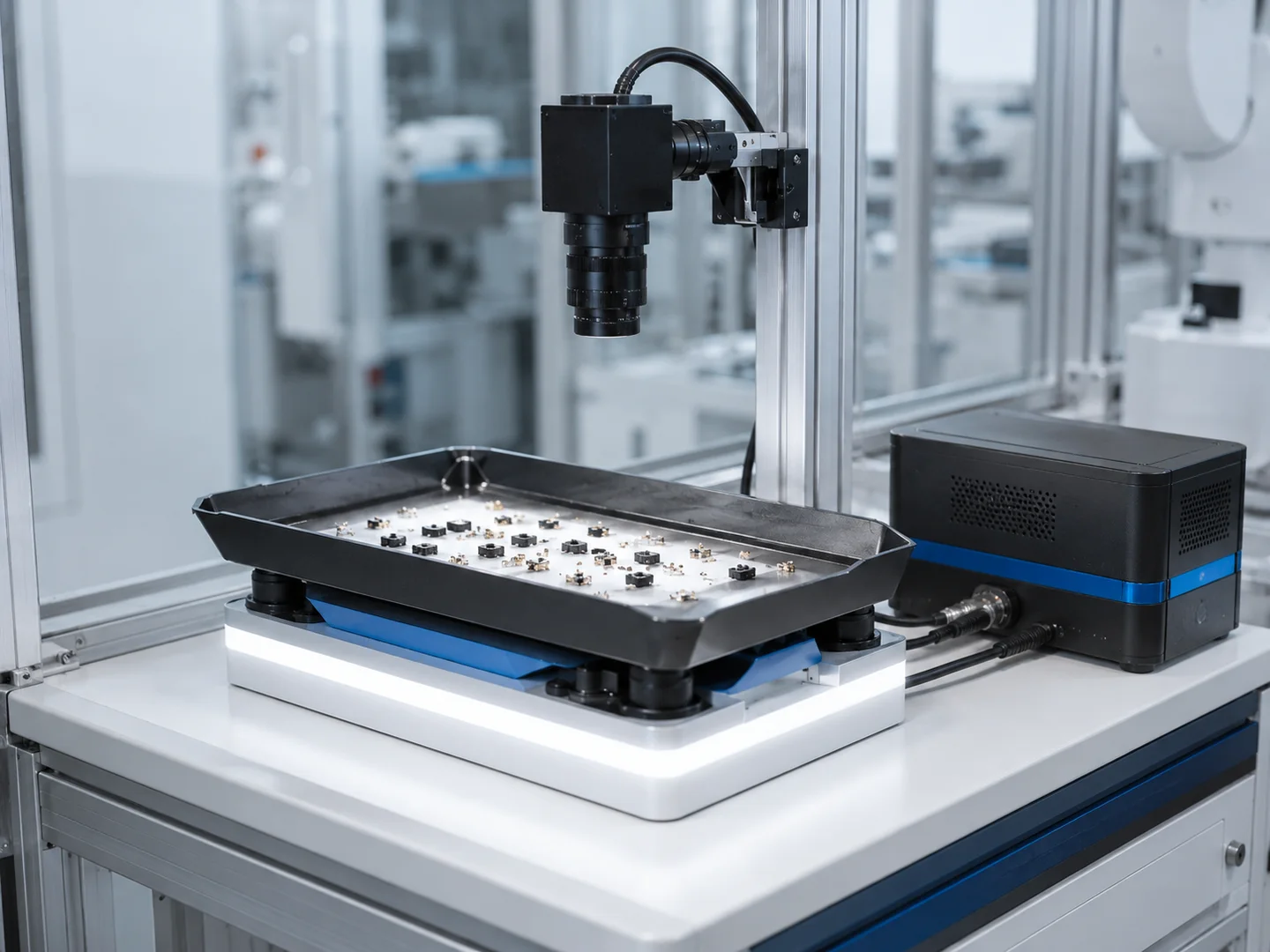

Compact flexible vibratory feeder

DEYI-F90

Reference model reviewed: MZ-F90

Manufacturer page reviewed Official spec page Request this route
Series
F-series flexible feeder
Dimensions
321 x 98 x 206mm
Plate inner size
71 x 111mm
Plate sidewall height
Standard 19, 13 and 9mm, customizable
Part size fit
0.1-2mm
Weight
16kg
Work voltage
DC24V / 8A
Idle run noise
<=65db
Max load
0.5kg
Max weight of flipable workpiece
<=10g
Cycle time of single action
100-250ms
Movement model
Vibrate vertically, gather and move around in one direction
Backlight
Built-in white backlight with adjustable brightness
Control driver board
Built-in driver, circuit isolation, NPN input/output, EMC and multi-wave control
Communication and interface
TCP/IP passive I/O route
  • Compact route for 0.1-2mm precision parts where tray footprint and fast reorientation matter.
Small flexible vibratory feeder

DEYI-F120

Reference model reviewed: MZ-F120

Manufacturer page reviewed Official spec page Request this route
Series
F-series flexible feeder
Dimensions
345 x 111 x 208mm
Plate inner size
89 x 120mm
Plate sidewall height
Standard 19, 13 and 9mm, customizable
Part size fit
0.1-5mm
Weight
14kg
Work voltage
DC24V / 8A
Idle run noise
<=65db
Max load
0.5kg
Max weight of flipable workpiece
<=10g
Cycle time of single action
100-250ms
Movement model
Vibrate vertically, gather and move around in one direction
Backlight
Built-in white backlight with adjustable brightness
Control driver board
Built-in driver, circuit isolation, NPN input/output, EMC and multi-wave control
Communication and interface
TCP/IP passive I/O route
  • Use when parts are slightly larger than F90 but the cell still needs a narrow compact feeder footprint.
Small-mid flexible vibratory feeder

DEYI-F150

Reference model reviewed: MZ-F150

Manufacturer page reviewed Official spec page Request this route
Series
F-series flexible feeder
Dimensions
235 x 132 x 131mm
Plate inner size
118 x 160mm
Plate sidewall height
Standard 26 and 19mm, customizable
Part size fit
3-10mm
Weight
9kg
Work voltage
DC24V / 8A
Idle run noise
<=65db
Max load
0.5kg
Max weight of flipable workpiece
<=30g
Cycle time of single action
150-300ms
Movement model
Vibrate vertically, gather and move around in one direction
Backlight
Built-in white backlight with adjustable brightness
Control driver board
Built-in driver, circuit isolation, NPN input/output, EMC and multi-wave control
Communication and interface
TCP/IP passive I/O route
  • Balanced small-part route when F90/F120 tray area is too limited but the application remains compact.

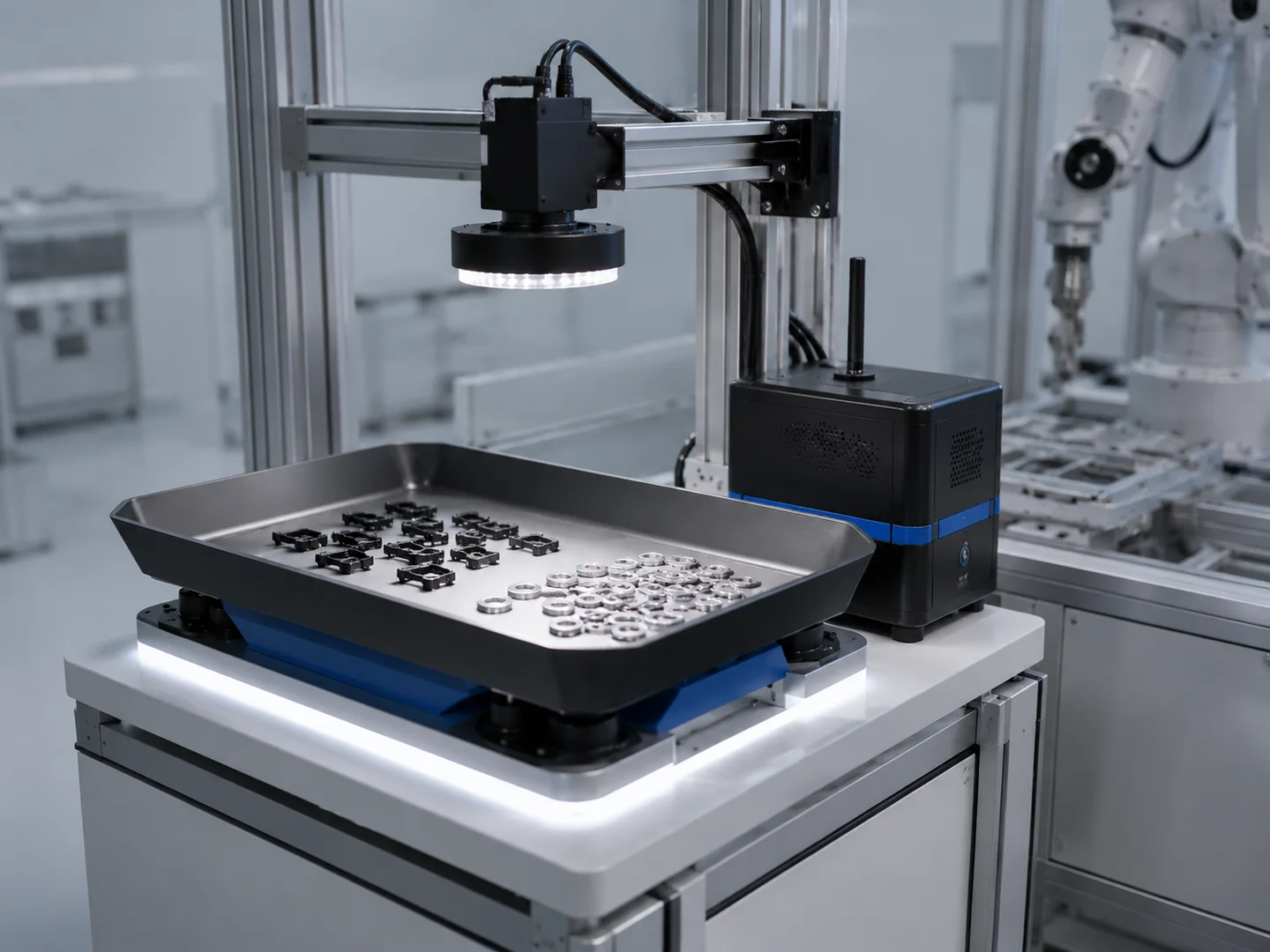

Mid-size flexible vibratory feeder

DEYI-F200

Reference model reviewed: MZ-F200

Manufacturer page reviewed Official spec page Request this route
Series
F-series flexible feeder
Dimensions
298 x 180 x 134.5mm
Plate inner size
156 x 208mm
Plate sidewall height
Standard 26 and 19mm, customizable
Part size fit
5-15mm
Weight
11kg
Work voltage
DC24V / 8A
Idle run noise
<=65db
Max load
0.5kg
Max weight of flipable workpiece
<=30g
Cycle time of single action
150-300ms
Movement model
Vibrate vertically, gather and move around in one direction
Backlight
Built-in white backlight with adjustable brightness
Control driver board
Built-in driver, circuit isolation, NPN input/output, EMC and multi-wave control
Communication and interface
TCP/IP passive I/O route
  • Default mid-size route for connector, plastic, medical-device and consumer-goods parts.
Large-mid flexible vibratory feeder

DEYI-F300

Reference model reviewed: MZ-F300

Manufacturer page reviewed Official spec page Request this route
Series
F-series flexible feeder
Dimensions
416 x 232 x 196.5mm
Plate inner size
210 x 280/340mm
Plate sidewall height
Standard 26 and 19mm, customizable
Part size fit
10-25mm
Weight
17kg
Work voltage
DC24V / 10A
Idle run noise
<=65db
Max load
1kg
Max weight of flipable workpiece
<=50g
Cycle time of single action
200-400ms
Movement model
Vibrate vertically, gather and move around in one direction
Backlight
Built-in white backlight with adjustable brightness
Control driver board
Built-in driver, circuit isolation, NPN input/output, EMC and multi-wave control
Communication and interface
TCP/IP passive I/O route
  • Use when part spread area and buffer count are more important than the smallest feeder footprint.
Large flexible vibratory feeder

DEYI-F400

Reference model reviewed: MZ-F400

Manufacturer page reviewed Official spec page Request this route
Series
F-series flexible feeder
Dimensions
470 x 269 x 213.5mm
Plate inner size
265 x 336mm
Plate sidewall height
Standard 48 and 30mm, customizable
Part size fit
25-40mm
Weight
21kg
Work voltage
DC24V / 8A
Idle run noise
<=65db
Max load
1.5kg
Max weight of flipable workpiece
<=50g
Cycle time of single action
200-400ms
Movement model
Vibrate vertically, gather and move around in one direction
Backlight
Built-in white backlight with adjustable brightness
Control driver board
Built-in driver, circuit isolation, NPN input/output, EMC and multi-wave control
Communication and interface
TCP/IP passive I/O route
  • Higher tray-area F route for larger hardware, plastic and automotive sub-parts.

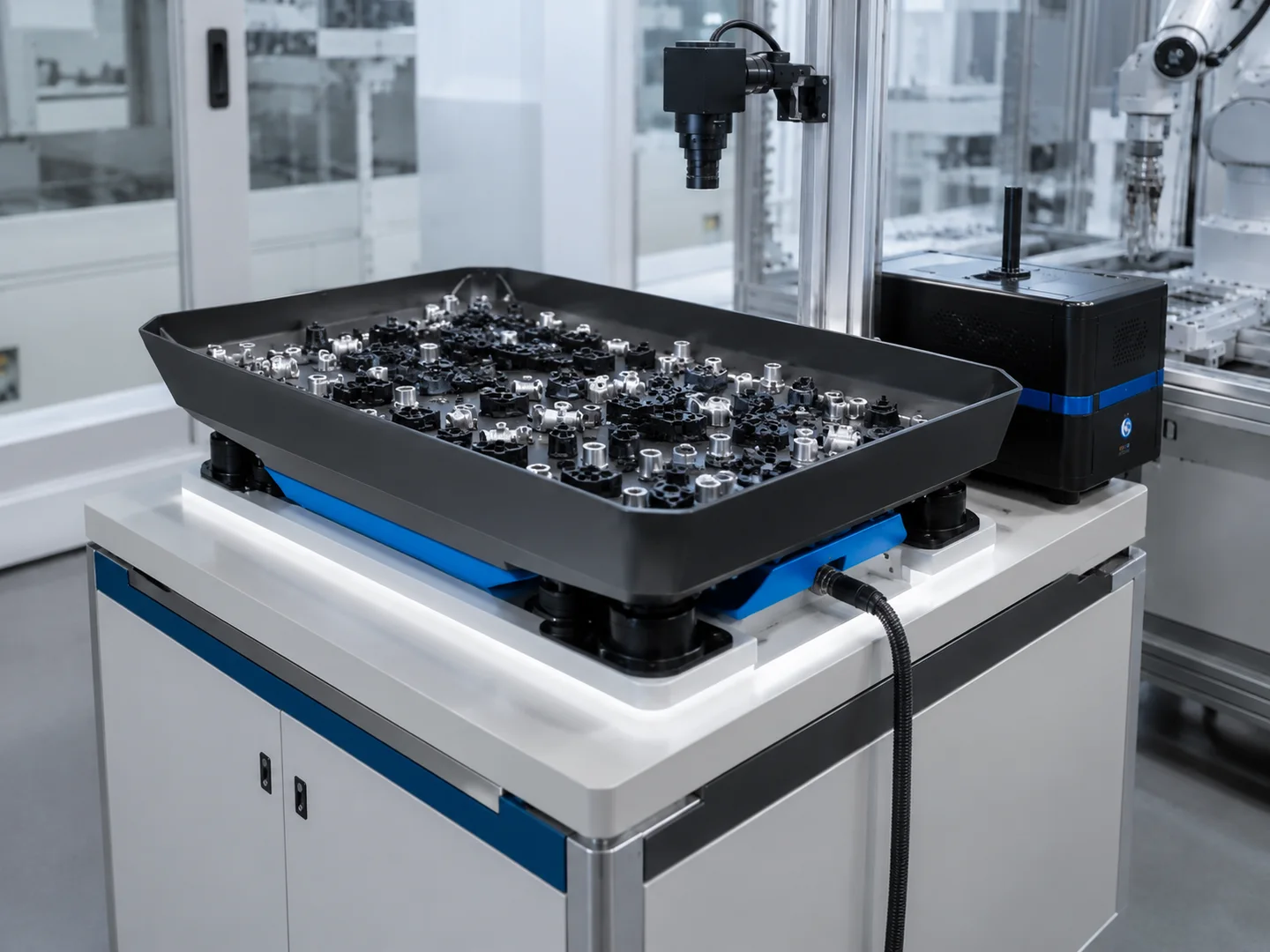

Largest F-series flexible vibratory feeder

DEYI-F500

Reference model reviewed: MZ-F500

Manufacturer page reviewed Official spec page Request this route
Series
F-series flexible feeder
Dimensions
598 x 345 x 211mm
Plate inner size
341 x 448mm
Plate sidewall height
Standard 66mm, customizable
Part size fit
40-100mm
Weight
27kg
Work voltage
DC24V / 10A
Idle run noise
<=65db
Max load
1.5kg
Max weight of flipable workpiece
<=50g
Cycle time of single action
200-500ms
Movement model
Vibrate vertically, gather and move around in one direction
Backlight
Built-in white backlight with adjustable brightness
Control driver board
Built-in driver, circuit isolation, NPN input/output, EMC and multi-wave control
Communication and interface
TCP/IP passive I/O route
  • Select this route when large-tray spread, part buffer volume and robot feeding coverage matter most.
FL economy flexible feeder

DEYI-FL200

Reference model reviewed: MZ-FL200

Brochure specs reviewed Official catalog route Request this route
Series
FL economy series
Dimensions
320 x 180 x 121mm
Plate inner size
208 x 156mm
Part size fit
5-15mm
Weight
5.8kg
Work voltage
DC24V / 8A-10A
Vibration frequency
49Hz
Cycle time of single action
150-300ms
Movement model
Vertical vibration dispersion, gathering and unidirectional movement around the tray
Backlight
Built-in adjustable white backlight
Control driver board
Built-in driver, circuit isolation, NPN input/output, EMC, multi-wave control and brake
Communication and interface
TCP/IP passive I/O route
Effective resonance isolation distance
100mm
  • Economy route for stable mass-produced small-part feeding where lower equipment weight is preferred.
FL economy flexible feeder

DEYI-FL300

Reference model reviewed: MZ-FL300

Brochure specs reviewed Official catalog route Request this route
Series
FL economy series
Dimensions
416 x 230 x 165mm
Plate inner size
304 x 210mm
Part size fit
10-25mm
Weight
10kg
Work voltage
DC24V / 8A-10A
Vibration frequency
32Hz
Cycle time of single action
200-400ms
Movement model
Vertical vibration dispersion, gathering and unidirectional movement around the tray
Backlight
Built-in adjustable white backlight
Control driver board
Built-in driver, circuit isolation, NPN input/output, EMC, multi-wave control and brake
Communication and interface
TCP/IP passive I/O route
Effective resonance isolation distance
100mm
  • Economy mid-size route when part size grows but the application still fits a simplified feeder package.
FL economy flexible feeder

DEYI-FL400

Reference model reviewed: MZ-FL400

Brochure specs reviewed Official catalog route Request this route
Series
FL economy series
Dimensions
470 x 258 x 168mm
Plate inner size
314 x 243mm
Part size fit
10-25mm
Weight
11kg
Work voltage
DC24V / 8A-10A
Vibration frequency
31Hz
Cycle time of single action
200-400ms
Movement model
Vertical vibration dispersion, gathering and unidirectional movement around the tray
Backlight
Built-in adjustable white backlight
Control driver board
Built-in driver, circuit isolation, NPN input/output, EMC, multi-wave control and brake
Communication and interface
TCP/IP passive I/O route
Effective resonance isolation distance
100mm
  • Economy FL route for broader tray coverage while keeping the simplified FL package.
FL economy large flexible feeder

DEYI-FL500

Reference model reviewed: MZ-FL500

Brochure specs reviewed Official catalog route Request this route
Series
FL economy series
Dimensions
530 x 336 x 195mm
Plate inner size
500 x 341mm
Part size fit
10-25mm
Weight
15kg
Work voltage
DC24V / 8A-10A
Vibration frequency
33Hz
Cycle time of single action
350-500ms
Movement model
Vertical vibration dispersion, gathering and unidirectional movement around the tray
Backlight
Built-in adjustable white backlight
Control driver board
Built-in driver, circuit isolation, NPN input/output, EMC, multi-wave control and brake
Communication and interface
TCP/IP passive I/O route
Effective resonance isolation distance
100mm
  • Large FL route for cost-sensitive cells that still need broad tray coverage.
FS full-view flexible feeder

DEYI-FS200

Reference model reviewed: MZ-FS200

Brochure specs reviewed Official catalog route Request this route
Series
FS full-view series
Dimensions
300 x 180 x 136mm
Plate inner size
290 x 160mm
Part size fit
5-15mm
Weight
5.3kg
Work voltage
DC24V / 8A-10A
Vibration frequency
40Hz
Cycle time of single action
150-300ms
Movement model
Vertical vibration dispersion, gathering and unidirectional movement around the tray
Backlight
Built-in adjustable white backlight
Control driver board
Built-in driver, circuit isolation, NPN input/output, EMC, multi-wave control and brake
Communication and interface
TCP/IP passive I/O route
Effective resonance isolation distance
100mm
  • Full-view route for space-limited equipment where a larger visual field improves pick efficiency.
FS full-view flexible feeder

DEYI-FS300

Reference model reviewed: MZ-FS300

Brochure specs reviewed Official catalog route Request this route
Series
FS full-view series
Dimensions
320 x 245 x 158mm
Plate inner size
290 x 245mm
Part size fit
5-15mm
Weight
8.6kg
Work voltage
DC24V / 8A-10A
Vibration frequency
38Hz
Cycle time of single action
150-300ms
Movement model
Vertical vibration dispersion, gathering and unidirectional movement around the tray
Backlight
Built-in adjustable white backlight
Control driver board
Built-in driver, circuit isolation, NPN input/output, EMC, multi-wave control and brake
Communication and interface
TCP/IP passive I/O route
Effective resonance isolation distance
100mm
  • Full-view mid-size route when pickup area and compact machine footprint both matter.
FS full-view flexible feeder

DEYI-FS400

Reference model reviewed: MZ-FS400

Brochure specs reviewed Official catalog route Request this route
Series
FS full-view series
Dimensions
440 x 340 x 198mm
Plate inner size
420 x 340mm
Part size fit
10-25mm
Weight
14kg
Work voltage
DC24V / 8A-10A
Vibration frequency
31Hz
Cycle time of single action
200-400ms
Movement model
Vertical vibration dispersion, gathering and unidirectional movement around the tray
Backlight
Built-in adjustable white backlight
Control driver board
Built-in driver, circuit isolation, NPN input/output, EMC, multi-wave control and brake
Communication and interface
TCP/IP passive I/O route
Effective resonance isolation distance
100mm
  • Largest FS route for limited-height equipment that still needs broad visible tray area.
Parallel flexible feeding station

DEYI-DTA-300A

Reference model reviewed: MZ-DTA-300A

Brochure specs reviewed Official station page Request this route
Axes
4-axis
X/Y range
300mm
Z range
80mm
Rotating axis
+/-360 degrees
Rated load
0.1kg
Repeatability
+/-0.15mm
Installation
Countertop
Input voltage / power
AC220V / 1.2kW
Output / input signal
10 OUT (NPN) / 10 IN (NPN)
Universal interface
USB-3 / HDMI-1
Monitor
External 17-19 inch display
Maximum feeding size
<10mm
Maximum feeding range
300 x 150mm semicircle
Standard vibration disc
MZ-FL150D19FW route
Standard storage bin
MZ-H1LSM route
Camera pixels
12MP upper camera standard, 5MP lower camera optional
  • Compact workstation route for small parts, short range and external-display integration.
Parallel flexible feeding station

DEYI-DTA-300B

Reference model reviewed: MZ-DTA-300B

Brochure specs reviewed Official station page Request this route
Axes
4-axis
X/Y range
400mm
Z range
100mm
Rotating axis
+/-360 degrees
Rated load
0.3kg
Repeatability
+/-0.15mm
Installation
Countertop
Input voltage / power
AC220V / 1.2kW
Output / input signal
10 OUT (NPN) / 10 IN (NPN)
Universal interface
USB-3 / HDMI-1
Monitor
10.1 inch industrial touch panel PC
Maximum feeding size
<20mm
Maximum feeding range
400 x 200mm semicircle
Standard vibration disc
MZ-FL200D19FW route
Standard storage bin
MZ-H2LSM route
Camera pixels
12MP upper camera standard, 5MP lower camera optional
  • Main DTA workstation route for compact 4-axis loading cells with integrated touch-panel operation.
Parallel flexible feeding station

DEYI-DTA-500B

Reference model reviewed: MZ-DTA-500B

Brochure specs reviewed Official station page Request this route
Axes
4-axis
X/Y range
600mm
Z range
180mm
Rotating axis
+/-360 degrees
Rated load
0.5kg
Repeatability
+/-0.15mm
Installation
Countertop
Input voltage / power
AC220V / 1.2kW
Output / input signal
10 OUT (NPN) / 10 IN (NPN)
Universal interface
USB-3 / HDMI-1
Monitor
10.1 inch industrial touch panel PC
Maximum feeding size
<30mm
Maximum feeding range
600 x 300mm semicircle
Standard vibration disc
MZ-FL300D33FW route
Standard storage bin
MZ-H5LSM route
Camera pixels
12MP upper camera standard, 5MP lower camera optional
  • Largest DTA route for higher feeding range, 0.5kg rated load and larger multi-part cells.
Direct-vibration and belt replenishment bins

DEYI-H-SERIES

Reference model reviewed: MZ-H replenishment bin routes

Brochure specs reviewed Official catalog route Request this route
Flat direct-vibration bins
1L / 2L / 3L stainless routes, DC24V, 40W class
Funnel direct-vibration bins
5L / 10L / 15L stainless routes, DC24V or AC220V, 120W class
Belt replenishment bins
10L / 20L / 30L / 40L stainless belt routes, AC220V, 120W class
Optional function
Shortage detection route
Route use
Part buffering and replenishment before flexible feeder singulation
  • Use storage-bin scope when loose-part volume, shortage detection or continuous feeding is part of the RFQ.

Swipe horizontally to compare reviewed model parameters. Use the mobile cards above on small screens.

Parameter Compact flexible vibratory feeder DEYI-F90 Reference model reviewed: MZ-F90 Manufacturer page reviewed Official spec page Small flexible vibratory feeder DEYI-F120 Reference model reviewed: MZ-F120 Manufacturer page reviewed Official spec page Small-mid flexible vibratory feeder DEYI-F150 Reference model reviewed: MZ-F150 Manufacturer page reviewed Official spec page Mid-size flexible vibratory feeder DEYI-F200 Reference model reviewed: MZ-F200 Manufacturer page reviewed Official spec page Large-mid flexible vibratory feeder DEYI-F300 Reference model reviewed: MZ-F300 Manufacturer page reviewed Official spec page Large flexible vibratory feeder DEYI-F400 Reference model reviewed: MZ-F400 Manufacturer page reviewed Official spec page Largest F-series flexible vibratory feeder DEYI-F500 Reference model reviewed: MZ-F500 Manufacturer page reviewed Official spec page FL economy flexible feeder DEYI-FL200 Reference model reviewed: MZ-FL200 Brochure specs reviewed Official catalog route FL economy flexible feeder DEYI-FL300 Reference model reviewed: MZ-FL300 Brochure specs reviewed Official catalog route FL economy flexible feeder DEYI-FL400 Reference model reviewed: MZ-FL400 Brochure specs reviewed Official catalog route FL economy large flexible feeder DEYI-FL500 Reference model reviewed: MZ-FL500 Brochure specs reviewed Official catalog route FS full-view flexible feeder DEYI-FS200 Reference model reviewed: MZ-FS200 Brochure specs reviewed Official catalog route FS full-view flexible feeder DEYI-FS300 Reference model reviewed: MZ-FS300 Brochure specs reviewed Official catalog route FS full-view flexible feeder DEYI-FS400 Reference model reviewed: MZ-FS400 Brochure specs reviewed Official catalog route Parallel flexible feeding station DEYI-DTA-300A Reference model reviewed: MZ-DTA-300A Brochure specs reviewed Official station page Parallel flexible feeding station DEYI-DTA-300B Reference model reviewed: MZ-DTA-300B Brochure specs reviewed Official station page Parallel flexible feeding station DEYI-DTA-500B Reference model reviewed: MZ-DTA-500B Brochure specs reviewed Official station page Direct-vibration and belt replenishment bins DEYI-H-SERIES Reference model reviewed: MZ-H replenishment bin routes Brochure specs reviewed Official catalog route
Series F-series flexible feederF-series flexible feederF-series flexible feederF-series flexible feederF-series flexible feederF-series flexible feederF-series flexible feederFL economy seriesFL economy seriesFL economy seriesFL economy seriesFS full-view seriesFS full-view seriesFS full-view seriesConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ
Dimensions 321 x 98 x 206mm345 x 111 x 208mm235 x 132 x 131mm298 x 180 x 134.5mm416 x 232 x 196.5mm470 x 269 x 213.5mm598 x 345 x 211mm320 x 180 x 121mm416 x 230 x 165mm470 x 258 x 168mm530 x 336 x 195mm300 x 180 x 136mm320 x 245 x 158mm440 x 340 x 198mmConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ
Plate inner size 71 x 111mm89 x 120mm118 x 160mm156 x 208mm210 x 280/340mm265 x 336mm341 x 448mm208 x 156mm304 x 210mm314 x 243mm500 x 341mm290 x 160mm290 x 245mm420 x 340mmConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ
Plate sidewall height Standard 19, 13 and 9mm, customizableStandard 19, 13 and 9mm, customizableStandard 26 and 19mm, customizableStandard 26 and 19mm, customizableStandard 26 and 19mm, customizableStandard 48 and 30mm, customizableStandard 66mm, customizableConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ
Part size fit 0.1-2mm0.1-5mm3-10mm5-15mm10-25mm25-40mm40-100mm5-15mm10-25mm10-25mm10-25mm5-15mm5-15mm10-25mmConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ
Weight 16kg14kg9kg11kg17kg21kg27kg5.8kg10kg11kg15kg5.3kg8.6kg14kgConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ
Work voltage DC24V / 8ADC24V / 8ADC24V / 8ADC24V / 8ADC24V / 10ADC24V / 8ADC24V / 10ADC24V / 8A-10ADC24V / 8A-10ADC24V / 8A-10ADC24V / 8A-10ADC24V / 8A-10ADC24V / 8A-10ADC24V / 8A-10AConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ
Idle run noise <=65db<=65db<=65db<=65db<=65db<=65db<=65dbConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ
Max load 0.5kg0.5kg0.5kg0.5kg1kg1.5kg1.5kgConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ
Max weight of flipable workpiece <=10g<=10g<=30g<=30g<=50g<=50g<=50gConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ
Cycle time of single action 100-250ms100-250ms150-300ms150-300ms200-400ms200-400ms200-500ms150-300ms200-400ms200-400ms350-500ms150-300ms150-300ms200-400msConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ
Movement model Vibrate vertically, gather and move around in one directionVibrate vertically, gather and move around in one directionVibrate vertically, gather and move around in one directionVibrate vertically, gather and move around in one directionVibrate vertically, gather and move around in one directionVibrate vertically, gather and move around in one directionVibrate vertically, gather and move around in one directionVertical vibration dispersion, gathering and unidirectional movement around the trayVertical vibration dispersion, gathering and unidirectional movement around the trayVertical vibration dispersion, gathering and unidirectional movement around the trayVertical vibration dispersion, gathering and unidirectional movement around the trayVertical vibration dispersion, gathering and unidirectional movement around the trayVertical vibration dispersion, gathering and unidirectional movement around the trayVertical vibration dispersion, gathering and unidirectional movement around the trayConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ
Backlight Built-in white backlight with adjustable brightnessBuilt-in white backlight with adjustable brightnessBuilt-in white backlight with adjustable brightnessBuilt-in white backlight with adjustable brightnessBuilt-in white backlight with adjustable brightnessBuilt-in white backlight with adjustable brightnessBuilt-in white backlight with adjustable brightnessBuilt-in adjustable white backlightBuilt-in adjustable white backlightBuilt-in adjustable white backlightBuilt-in adjustable white backlightBuilt-in adjustable white backlightBuilt-in adjustable white backlightBuilt-in adjustable white backlightConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ
Control driver board Built-in driver, circuit isolation, NPN input/output, EMC and multi-wave controlBuilt-in driver, circuit isolation, NPN input/output, EMC and multi-wave controlBuilt-in driver, circuit isolation, NPN input/output, EMC and multi-wave controlBuilt-in driver, circuit isolation, NPN input/output, EMC and multi-wave controlBuilt-in driver, circuit isolation, NPN input/output, EMC and multi-wave controlBuilt-in driver, circuit isolation, NPN input/output, EMC and multi-wave controlBuilt-in driver, circuit isolation, NPN input/output, EMC and multi-wave controlBuilt-in driver, circuit isolation, NPN input/output, EMC, multi-wave control and brakeBuilt-in driver, circuit isolation, NPN input/output, EMC, multi-wave control and brakeBuilt-in driver, circuit isolation, NPN input/output, EMC, multi-wave control and brakeBuilt-in driver, circuit isolation, NPN input/output, EMC, multi-wave control and brakeBuilt-in driver, circuit isolation, NPN input/output, EMC, multi-wave control and brakeBuilt-in driver, circuit isolation, NPN input/output, EMC, multi-wave control and brakeBuilt-in driver, circuit isolation, NPN input/output, EMC, multi-wave control and brakeConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ
Communication and interface TCP/IP passive I/O routeTCP/IP passive I/O routeTCP/IP passive I/O routeTCP/IP passive I/O routeTCP/IP passive I/O routeTCP/IP passive I/O routeTCP/IP passive I/O routeTCP/IP passive I/O routeTCP/IP passive I/O routeTCP/IP passive I/O routeTCP/IP passive I/O routeTCP/IP passive I/O routeTCP/IP passive I/O routeTCP/IP passive I/O routeConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ
Vibration frequency Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ49Hz32Hz31Hz33Hz40Hz38Hz31HzConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ
Effective resonance isolation distance Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ100mm100mm100mm100mm100mm100mm100mmConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ
Axes Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ4-axis4-axis4-axisConfirm during RFQ
X/Y range Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ300mm400mm600mmConfirm during RFQ
Z range Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ80mm100mm180mmConfirm during RFQ
Rotating axis Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ+/-360 degrees+/-360 degrees+/-360 degreesConfirm during RFQ
Rated load Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ0.1kg0.3kg0.5kgConfirm during RFQ
Repeatability Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ+/-0.15mm+/-0.15mm+/-0.15mmConfirm during RFQ
Installation Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQCountertopCountertopCountertopConfirm during RFQ
Input voltage / power Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQAC220V / 1.2kWAC220V / 1.2kWAC220V / 1.2kWConfirm during RFQ
Output / input signal Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ10 OUT (NPN) / 10 IN (NPN)10 OUT (NPN) / 10 IN (NPN)10 OUT (NPN) / 10 IN (NPN)Confirm during RFQ
Universal interface Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQUSB-3 / HDMI-1USB-3 / HDMI-1USB-3 / HDMI-1Confirm during RFQ
Monitor Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQExternal 17-19 inch display10.1 inch industrial touch panel PC10.1 inch industrial touch panel PCConfirm during RFQ
Maximum feeding size Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ<10mm<20mm<30mmConfirm during RFQ
Maximum feeding range Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ300 x 150mm semicircle400 x 200mm semicircle600 x 300mm semicircleConfirm during RFQ
Standard vibration disc Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQMZ-FL150D19FW routeMZ-FL200D19FW routeMZ-FL300D33FW routeConfirm during RFQ
Standard storage bin Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQMZ-H1LSM routeMZ-H2LSM routeMZ-H5LSM routeConfirm during RFQ
Camera pixels Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ12MP upper camera standard, 5MP lower camera optional12MP upper camera standard, 5MP lower camera optional12MP upper camera standard, 5MP lower camera optionalConfirm during RFQ
Flat direct-vibration bins Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ1L / 2L / 3L stainless routes, DC24V, 40W class
Funnel direct-vibration bins Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ5L / 10L / 15L stainless routes, DC24V or AC220V, 120W class
Belt replenishment bins Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQ10L / 20L / 30L / 40L stainless belt routes, AC220V, 120W class
Optional function Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQShortage detection route
Route use Confirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQConfirm during RFQPart buffering and replenishment before flexible feeder singulation
RFQ notes
  • Compact route for 0.1-2mm precision parts where tray footprint and fast reorientation matter.
  • Use when parts are slightly larger than F90 but the cell still needs a narrow compact feeder footprint.
  • Balanced small-part route when F90/F120 tray area is too limited but the application remains compact.
  • Default mid-size route for connector, plastic, medical-device and consumer-goods parts.
  • Use when part spread area and buffer count are more important than the smallest feeder footprint.
  • Higher tray-area F route for larger hardware, plastic and automotive sub-parts.
  • Select this route when large-tray spread, part buffer volume and robot feeding coverage matter most.
  • Economy route for stable mass-produced small-part feeding where lower equipment weight is preferred.
  • Economy mid-size route when part size grows but the application still fits a simplified feeder package.
  • Economy FL route for broader tray coverage while keeping the simplified FL package.
  • Large FL route for cost-sensitive cells that still need broad tray coverage.
  • Full-view route for space-limited equipment where a larger visual field improves pick efficiency.
  • Full-view mid-size route when pickup area and compact machine footprint both matter.
  • Largest FS route for limited-height equipment that still needs broad visible tray area.
  • Compact workstation route for small parts, short range and external-display integration.
  • Main DTA workstation route for compact 4-axis loading cells with integrated touch-panel operation.
  • Largest DTA route for higher feeding range, 0.5kg rated load and larger multi-part cells.
  • Use storage-bin scope when loose-part volume, shortage detection or continuous feeding is part of the RFQ.
Quote variables

What changes the route, cost and delivery review.

Application route
0.1-100mm loose-part singulation, Robot pick-and-place feeding, Multi-SKU flexible loading, Electronics connector and precision part feeding
Hardware scope
F / FL / FS feeder series, 0.1-100mm part range, DTA robot workstation
Buyer reference model
Flexible feeding automation reference
Risk checks

Common reasons product selection goes wrong.

  • Choosing by resolution, catalog size or brand reference before defining the inspection target.
  • Ignoring lighting, lens, fixture or trigger limits that decide whether the component can repeat on the production line.
  • Requesting a quote without good/bad sample images, line speed, target tolerance or the current failure mode.
Evidence to prepare

Evidence that helps engineering reply faster.

Part photos or short line videoGood and bad sample examplesTarget feature size or toleranceField of view and working distanceLine speed, trigger and interface needsCurrent model, competitor reference or failure mode

Related solution routes

Connect this product family to an inspection problem.

View all solutions
Solution

Robot Guidance

Vision routes for pickup, positioning, alignment and assembly verification.

 Solution

Flexible Feeding & Robot Loading

Build flexible small-part loading cells with F/FL/FS feeder trays, optional storage bins, vision positioning and DTA robot pickup routes.

Application case briefs

See how this product family appears in real inspection scenarios.

View all case briefs
Electronics inspection

PCB Connector Pin Presence Inspection

Application brief for checking connector pin presence, orientation and bent-pin risk with camera, lens and controlled lighting.

 Dimension measurement

Stamped Part Instant Measurement

Application route for fast dimensional checks on stamped, machined or molded parts using instant measuring systems.

 Robot guidance

Robot Guidance Pick and Place Positioning

Application route for robot pick, positioning and assembly guidance using 2D or 3D vision based on part presentation.

Related buying guides

Use these guides to validate the product route before RFQ.

View all resources
Resource

Flexible Feeder Robot Loading for Small Parts

Plan flexible feeder robot loading for screws, terminals, contacts and small molded parts by part behavior, tray route, vision positioning and pickup repeatability.

 Resource

Flexible Feeder Selection Guide

Choose flexible feeders by part behavior, tray surface, vision pickup, robot handoff and takt-time risk instead of tray size alone.

 Resource

Area Scan Camera Explained

Understand area scan cameras for indexed parts, snapshots, robot guidance, defect inspection and measurement tasks.

 Resource

Line Scan Camera vs Area Scan Camera

Compare line scan and area scan cameras by motion type, material width, defect size, encoder timing, lighting stability and integration risk.

Reference alternatives

Compare this product family against reference-model requirements.

View all comparisons
Compare

Omron Vision System Alternative

Compare Omron-style inspection system requirements with modular cameras, optics, lighting and smart camera routes.

 Compare

Banner Vision Sensor Alternative

Compare Banner-style vision sensors with smart cameras, lighting and compact pass/fail inspection routes.

 Compare

Keyence Vision System Alternative

A neutral selection guide for teams comparing Keyence-style integrated vision systems with component-level inspection routes.

 Compare

Cognex Camera Alternative

Compare Cognex-style machine vision camera requirements with inspection goals, lighting constraints and integration budget.

Product RFQ

Need help selecting flexible feeders & workstations?

Send working distance, target size, speed, defect type, competitor model or sample images before locking a part number.

Request engineering RFQ

Product FAQ

Common questions before selecting flexible feeders & workstations.

Ask engineering
What range do DEYI flexible feeders cover?

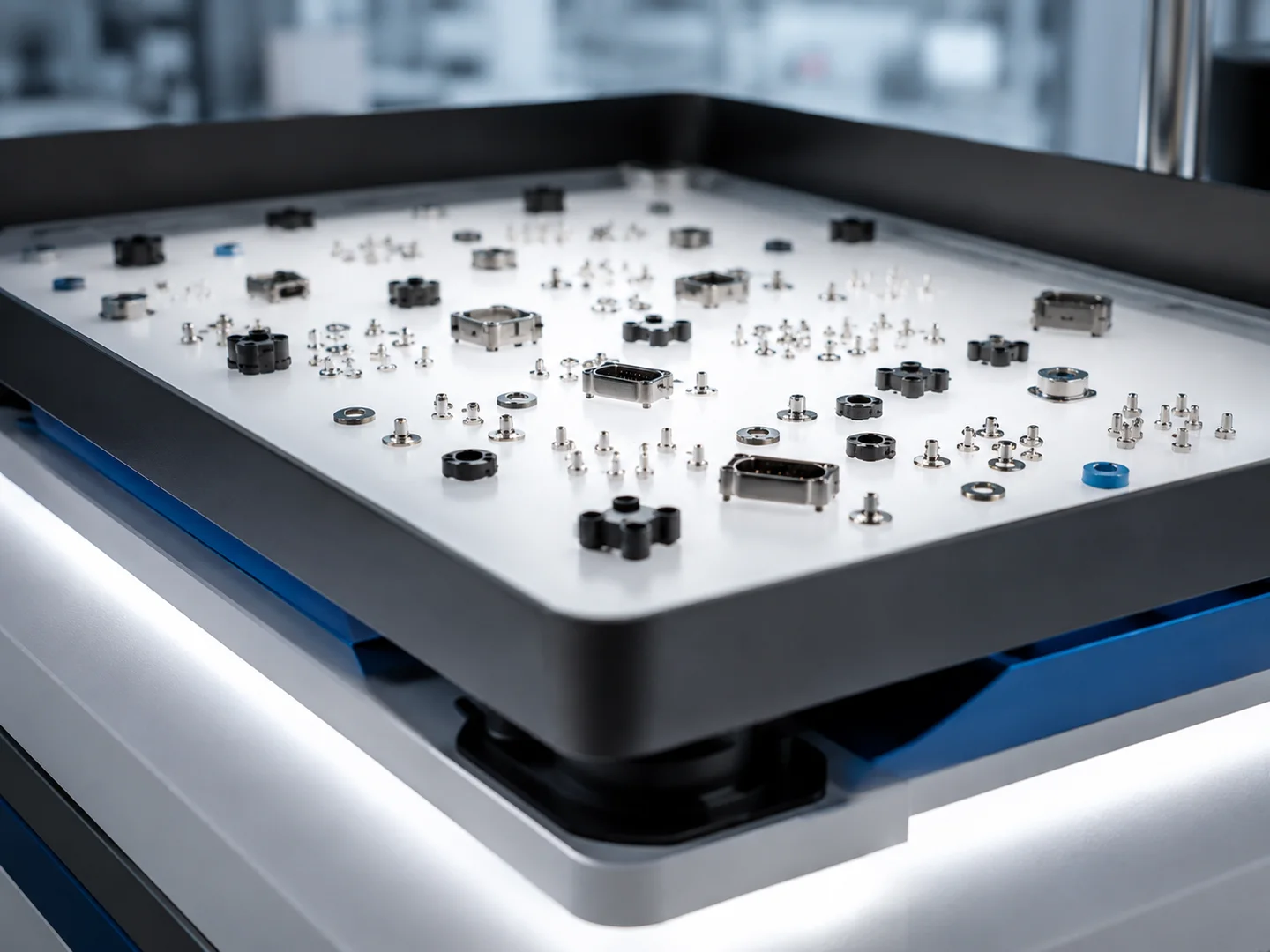

DEYI flexible feeders cover 0.1-100mm loose parts across 18 F/FL/FS/DTA routes. F-series tray sizes range from 71 x 111mm on F90 to 341 x 448mm on F500.

How do I choose between F, FL and FS flexible feeder series?

Use F as the main size ladder, FL when cost and weight matter for stable applications, and FS when the machine needs a larger full-view pickup field in limited space.

When should I choose a DTA flexible feeding workstation?

Choose DTA when the project needs feeder, storage bin, vision positioning, controller I/O, robot handoff and 4-axis motion as one cell. DTA repeatability is listed at +/-0.15mm.

What information should I send for a flexible feeder RFQ?

Send part size, weight, material, photos or video, sticking or rolling behavior, target cycle time, tray depth, robot pickup method and communication requirements.

Can one flexible feeder replace every bowl feeder?

No. A flexible feeder is strongest for SKU changes, loose small parts and vision-guided robot pickup. Very high-speed single-SKU feeding may still justify a fixed bowl feeder.

Contact

Direct RFQ contact

Talk to engineering about the inspection problem.

Send sample images, competitor model, FOV, working distance and line speed before model selection.

Phone +86 139 2616 0933 Email sales [at] deyivision.com
Open RFQ page Request sample review
Target: selection brief within 24h
Send sample images
