What the system should handle in this environment.
- Small feature detection
- Precise positioning
- Reflective surfaces and tight fixtures
- Flexible small-part feeding
Industry application

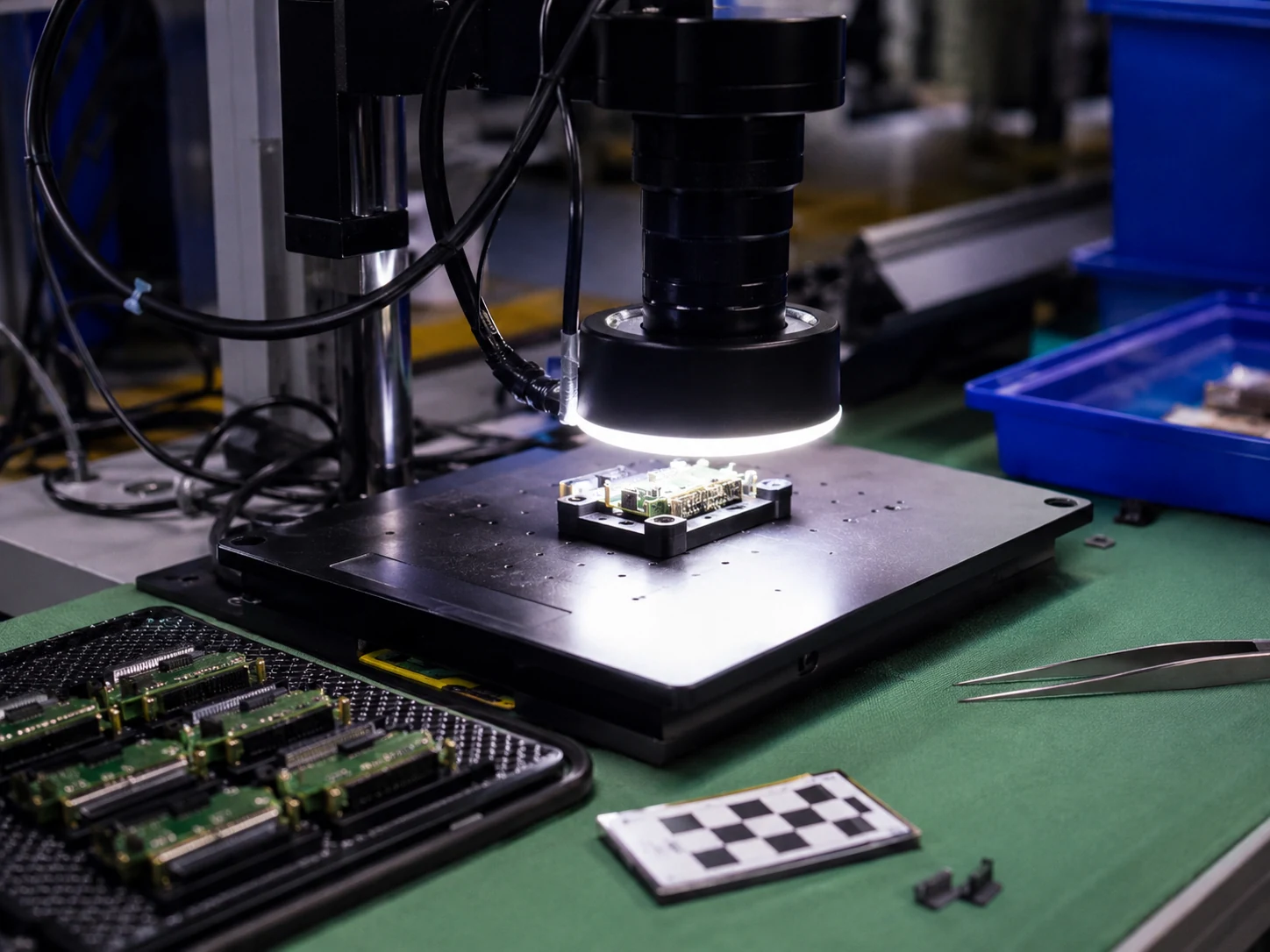

Electronics Inspection
Vision inspection routes for PCB, connector, screen, small component and assembly verification.
Product families to review first.
Related solutions
Inspection solution pages that usually connect to this industry.
Solution
Automated Visual Inspection
Build automated visual inspection systems for defect detection, presence checks, surface inspection, orientation, measurement and repeatable pass/fail output.
SolutionVision Inspection System
Plan a complete vision inspection system for defect checks, presence, measurement, barcode reading and pass/fail output.
Industry RFQ
Need an application route for electronics inspection?
Send part images, sample defects, line speed, target accuracy and current station constraints.
Request engineering RFQ Published parameters
Hardware parameters behind electronics inspection routes
| Model | Family | Parameter | Value |
|---|---|---|---|
| DY-RS3475-W | Machine Vision Lighting | Power | 2W |
| DY-RS3475-W | Machine Vision Lighting | Light opening | 34mm outer / 10mm inner / 19mm height |
| DY-RS3475-W | Machine Vision Lighting | Color temperature | 6000-10000K |
| DY-FA0401C | Machine Vision Lenses | Focal length | 4mm |
| DY-FA0401C | Machine Vision Lenses | Sensor size | 1/1.8 inch |
| DY-FA0401C | Machine Vision Lenses | F.NO | 2.0-C |
| DY-GE307GM | Industrial 2D Cameras | Resolution / frame rate | 2048 x 1536 MAX @37FPS |
| DY-GE307GM | Industrial 2D Cameras | Effective pixels | 3MP |
| DY-GE307GM | Industrial 2D Cameras | Pixel size | 3.4 x 3.4um |
| DEYI-F90 | Flexible Feeders & Workstations | Dimensions | 321 x 98 x 206mm |
| DEYI-F90 | Flexible Feeders & Workstations | Plate inner size | 71 x 111mm |
| DEYI-F90 | Flexible Feeders & Workstations | Plate sidewall height | Standard 19, 13 and 9mm, customizable |
Industry FAQ
Common questions for electronics inspection engineering teams.
Which inspection route is usually reviewed first for electronics inspection?
Review the production environment and failure mode first: Small feature detection, Precise positioning, Reflective surfaces and tight fixtures, Flexible small-part feeding. Then map those needs to camera, lens, lighting, 3D, smart camera or barcode reader routes.
What information should I send before requesting a machine vision quote?
Send part photos or drawings, target defect or measurement goal, field of view, working distance, line speed, accuracy target, lighting limits and any current camera, lens, light, barcode reader or competitor model.
Do I need a 2D or 3D machine vision system?
Use 2D when contrast, edges, labels or position are enough to judge the part. Use 3D when height, profile, gap, volume, weld shape or surface geometry decides pass or fail.
How should I choose machine vision lighting?
Start from the defect and material surface instead of the camera model. Backlight helps edge measurement, coaxial and dome lighting help reflective surfaces, and bar or ring lighting often works for general presence and defect checks.
Can Deyi Vision support projects that reference Keyence, Cognex or other brand routes?
Deyi Vision is not affiliated with those brands. As a factory-direct machine vision source, we can map the inspection goal, model reference and production route to a component-level camera, lens, light, reader or smart-camera selection.
