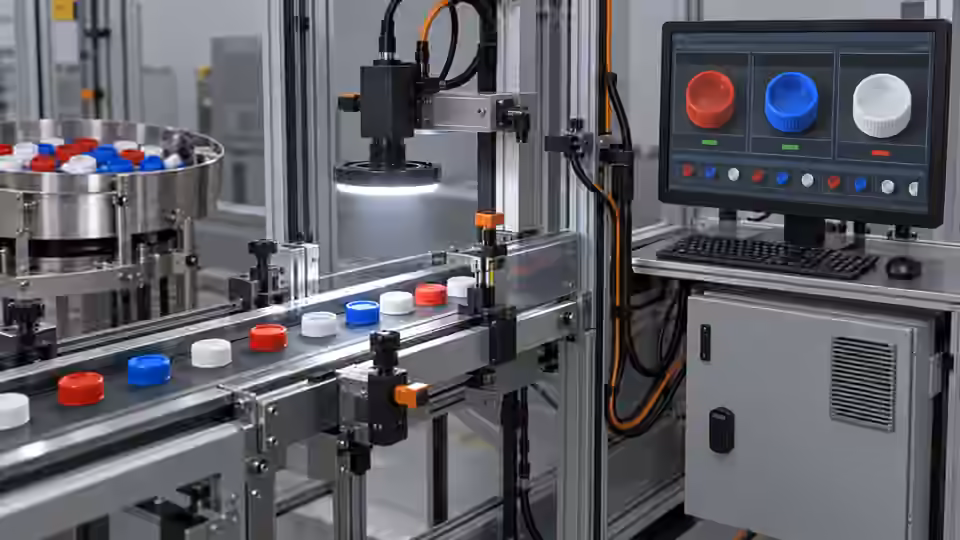

SKU color sorting: acceptance and unknown route

Purpose and operating boundary

Evaluate known-class coverage, novel-item handling and physical route association separately rather than reporting one flattering color accuracy number.

This tutorial defines an engineering evaluation, not a ready-to-run product certification. The current Deyi Vision public PC example covers an EAN-13 workflow on confirmed sample images. Native OCR and detection work in the engineering code must be checked against the installed runtime, bound models and job before use. A browser template does not prove browser execution: the planned OpenCV.js backend needs separate verification. Cloud recognition requires explicit approval of the image scope, provider, model and cost. A review archive is not an executable release package. Camera, firmware and driver compatibility require their own check. All worksheet values below are hypothetical; they are not Deyi Vision measurements or customer results.

Prepare the evidence

Freeze classes, unknown policy, masks and any SKU mapping with an independent specimen set. Begin with output simulation and supervised routing; keep unsupported execution paths inhibited. Define which timestamp starts the deadline and which acknowledgement proves completion. Save queueing and communication delays beside image processing so that a fast algorithm does not conceal a late line result. Use monotonic timing for intervals and a separately documented clock mapping when devices use different clocks. Record tail delays, missing results and reconnect behavior, not only the average. A new recipe must not reinterpret results already in flight; either finish under the recorded revision or apply the agreed inhibit procedure. Keep the output sequence, product position and confirmation together. The acceptance record should distinguish correct classification from successful communication and from confirmed physical routing. Color sorting and SKU recognition answer different questions. A color region may match a red reference while the item is the wrong size, label or package variant. Define whether the job sorts a physical color, verifies an expected SKU or requires both independent checks. Use color images with known channel order and keep exposure, white balance and light spectrum in the recipe. Test acceptable material lots, glossy surfaces, shadows and foreign products rather than only a clean reference swatch. Low saturation makes hue unreliable, and clipped highlights remove information that an algorithm cannot restore. Unknown, unobservable and mixed-color items need an explicit route. If semantic SKU recognition uses a model, validate that model separately from the color threshold and require approval before any cloud transfer. Write the line contract before connecting a verdict to an actuator. Define acquisition identity, recipe revision, result state, deadline, acknowledgement and the disposition of missing or late data. Exercise the handshake with outputs inhibited, then use a supervised line trial under the plant acceptance procedure. Measure from the same defined event on each run; processing time alone omits queueing, transfer and output delay. A repeated product identifier is not a unique frame identifier. Test stop, restart, reconnect and recipe change with outstanding work. Preserve the full sequence so that the part being rejected can be traced to the evidence that justified that action.

Procedure

1. Build a confusion record with an explicit unknown column and retain all missing, Review and error outcomes.
2. Evaluate color agreement independently of semantic SKU identity; identical colors do not establish identical products.
3. Send event ID, class or unknown reason and revision, then verify acknowledgement and the supervised destination.
4. Inject ambiguous color, unseen SKU, missing frame and late response; confirm the declared unknown or inhibited route without substituting a nearby known class.

Interpret the trial

The hypothetical set has 20 red, 20 blue and 10 novel items. Known-class routing covers 37 of 40, or 92.5%; it is not an overall accuracy claim. For novel items, 2 of 10 are wrongly assigned known classes, or 20%. Keeping those errors visible reveals a failure hidden by reporting only the successful known routes.

Recording worksheet

known_coverage = (18 + 19) / (20 + 20) = 37 / 40 = 92.5%
novel_wrong_known = (1 + 1) / 10 = 2 / 10 = 20%
N = 20 + 20 + 10 = 50

Two engineering views

Failure diagnosis

• A dashboard omitting unknowns inflates apparent performance.
• A correct class on the wrong event or physical bin still fails acceptance, even if the image classification was correct.

Acceptance and handover

Accept each agreed limit for known classes, novel rejection, complete accounting and actual route handling. The worksheet illustrates how to calculate the metrics; only independent real samples and witnessed line evidence can establish the deployed result.

Keep the source images, the expected decision, the exact revision and the complete result record together. Freeze the evaluation set before selecting the final parameters. If those answers are later used to tune the workflow, mark that set as development data and obtain a new independent acceptance set. Keep Review, NoResult, execution error and missing acquisition visible in the denominator; do not turn them into passes by filtering rows. Save a reproducible failure alongside the successful sample. The handover should identify who may change the recipe, how a prior approved revision is restored and which device output remains inhibited until acceptance. A software result alone does not establish that a moving physical part reached the correct destination.
