Packaging Label and Barcode Inspection System

Design packaging label and barcode inspection for wrong-label risk, no-read events, label position, print verification, conveyor speed and reject output.

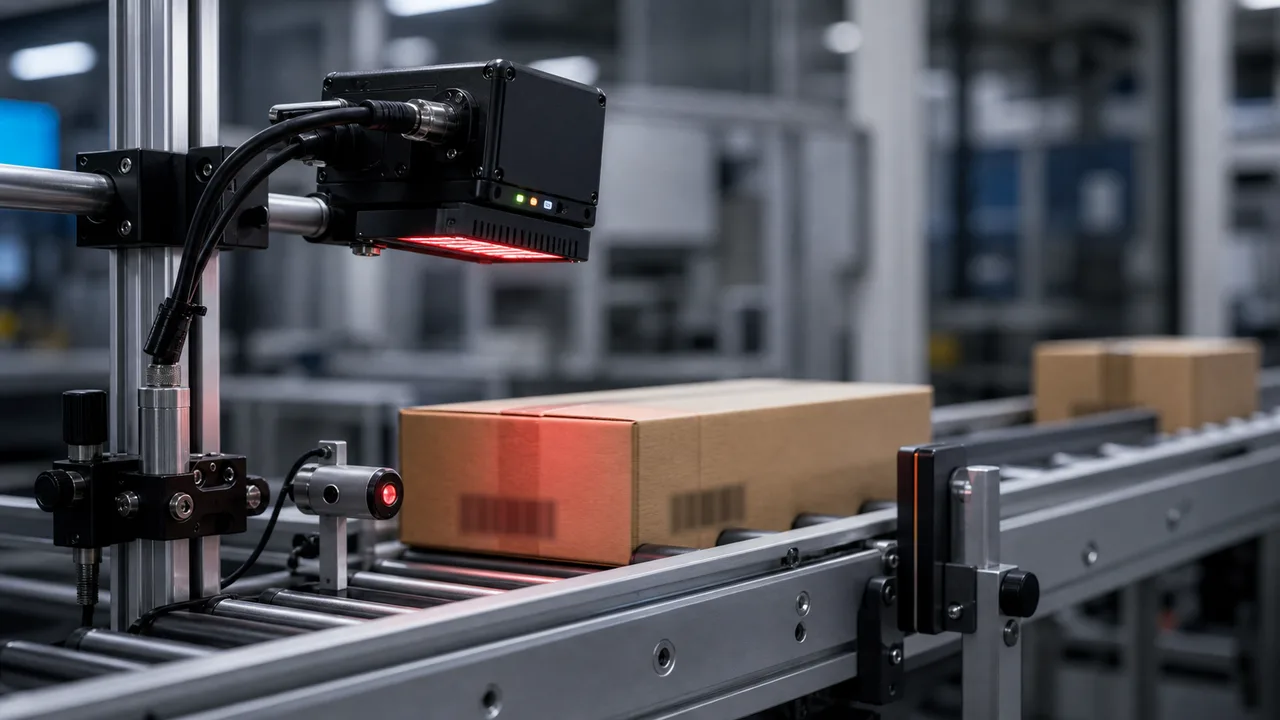

Packaging label and barcode inspection line with fixed reader smart camera and conveyor reject output

Direct answer

Packaging Label and Barcode Inspection System

A packaging label and barcode inspection system should reduce 3 common losses: wrong label, no-read shipment and failed reject timing. Confirm code type, label position tolerance, conveyor speed, read-rate target and PLC/database output before hardware selection.

Quick answer

What is the short answer for packaging label and barcode inspection system?

Treat packaging inspection as a line event: label presence, code decode, print check, reject output and traceability record must be planned together.

Quick answer

What should be confirmed before RFQ?

Conveyor speed and trigger position decide capture stability.

Quick answer

What evidence should Deyi Vision review?

Reject timing and data output are part of the inspection scope.

Key takeaways

What this page should help engineering teams decide.

Wrong-label and no-read events should be defined separately.
Conveyor speed and trigger position decide capture stability.
Reject timing and data output are part of the inspection scope.

Product families commonly involved.

Key point

Split label presence from barcode readability.

A label can be present but unreadable, and a barcode can read while the wrong label is applied. A strong packaging route defines which checks are required: presence, position, OCR, code decode, grade or database match.

Key point

Read-rate must be tested at conveyor speed.

A barcode reader that decodes on a stopped carton may fail when labels move, wrinkle, curve or reflect light. The RFQ should include line speed, trigger method, read distance and no-read handling.

Key point

Lighting changes with packaging material.

Glossy film, shrink wrap, metalized labels, cardboard and plastic bottles need different lighting assumptions. Integrated reader light may work for matte cartons, while reflective packages may need external angle control.

Key point

Reject output prevents silent traceability gaps.

If a no-read or wrong-label event does not trigger reject, alarm or manual review, the inspection has not solved the shipping risk. Define PLC output, reject distance and database handoff before quote.

Selection framework

Use this guide as a pre-RFQ decision filter, not as a part-number shortcut.

Machine vision selection is usually stable when the project starts from the inspection condition instead of a catalog model. Before requesting a quote, define what must be detected or measured, how the part moves, what surface behavior affects contrast and which factory constraint cannot change.

For packaging label and barcode inspection system, the engineering team should translate the requirement into testable inputs: sample images, target tolerance, line speed, field of view, working distance, mounting envelope and the current failure mode. That gives the factory enough evidence to map the request to camera, lighting, optics, reader or 3D routes.

Decision matrix

Three checks before locking the route.

Fixed barcode reader

Use when decode and traceability are the main events.

Smart camera

Use when label position, print presence, code and visual checks are combined.

Conveyor trigger

Capture timing must match label position and reject distance.

Comparison table

Use these data points to turn the concept into an RFQ-ready decision.

Factor	Practical rule	RFQ impact
Fixed barcode reader	Use when decode and traceability are the main events.	Send code type, size, distance, speed and output protocol.
Smart camera	Use when label position, print presence, code and visual checks are combined.	Clarifies whether the station needs inspection logic beyond reading.
Conveyor trigger	Capture timing must match label position and reject distance.	Send speed range, sensor position and PLC timing.
Database match	Use when the code must be verified against SKU, lot or order data.	Confirm communication protocol and failure workflow.

Application proof

Related delivery routes that make this selection decision concrete.

View all cases

Packaging inspection

Packaging Label and Barcode Traceability

Labels and codes move quickly, vary in position and must be verified without slowing the packaging line.

Direct part mark code reading review for metal parts with camera and lighting

Metal and surface inspection

Direct Part Mark Code Reading on Metal Parts

DPM marks often fail because mark depth, surface finish and lighting angle change the apparent code contrast.

Battery inspection

Battery Tab Weld Height Inspection

Battery tab weld inspection needs geometry confidence, stable position reference and traceability under high station throughput.

Common mistakes

Problems that slow down selection.

Selecting by model number before the inspection target is measurable.
Treating lighting as an accessory instead of the main contrast-control tool.
Ignoring fixture stability, part variation and operator maintenance workflow.

Factory handoff

What Deyi Vision reviews after receiving the project details.

The factory route review starts by checking whether the image can be made stable with lighting and fixture control. Then the camera, lens, reader or 3D sensor route is sized against speed, resolution, interface and installation constraints.

If you already have a Keyence, Cognex, Basler, OPT, LMI, Hikrobot or barcode-reader reference, include it as a benchmark. Deyi Vision uses the reference to understand the application class; final selection still depends on real samples and production limits.

Guide to RFQ

Have a real part, sample image or production constraint?

Use the guide to frame the question, then send the details so engineering can recommend a route.

Request engineering RFQ

Guide FAQ

Questions related to packaging label and barcode inspection system.

Ask engineering

What should a packaging label inspection system check?

It can check label presence, label position, barcode decode, OCR, wrong label, print quality, cap or seal presence and reject output depending on the line risk.

Why do barcode reads fail on packaging lines?

Common causes are motion blur, glare, curved labels, small module size, bad trigger timing, label position variation and weak no-read handling.

What should I send for a packaging inspection RFQ?

Send package photos, code samples, line speed, read distance, label tolerance, lighting issues, PLC/database output and no-read or wrong-label workflow.
