Area Scan Camera Explained

Direct answer

Area Scan Camera Explained

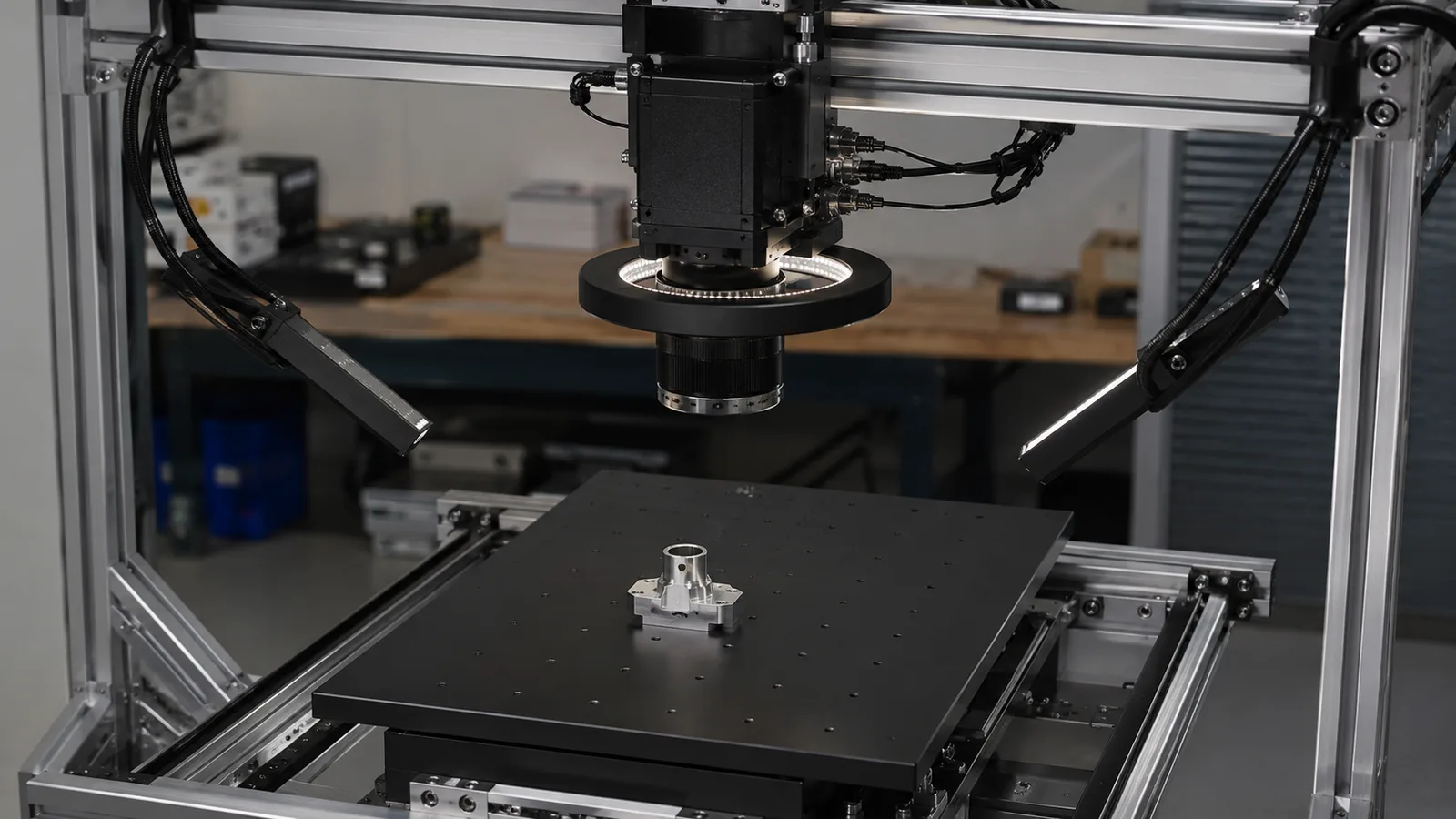

An area scan camera captures 1 full 2D frame with width and height pixels. It fits indexed parts, robot positions and stable snapshots; use line scan when motion or web width makes full-frame capture inefficient.

Quick answer

What is the short answer for area scan camera explained?

An area scan camera captures 1 full 2D frame with width and height pixels. It fits indexed parts, robot positions and stable snapshots; use line scan when motion or web width makes full-frame capture inefficient.

Quick answer

What should be confirmed before RFQ?

They fit indexed, stopped or momentarily stable parts.

Quick answer

What evidence should Deyi Vision review?

Line scan is better for continuous material or very wide moving targets.

Key takeaways

What this page should help engineering teams decide.

Area scan cameras capture a complete 2D frame at once.
They fit indexed, stopped or momentarily stable parts.
Line scan is better for continuous material or very wide moving targets.

Product families commonly involved.

Key point

Area scan captures a whole image at once.

The sensor records width and height pixels in 1 frame, making it intuitive for presence checks, positioning, measurement and defect inspection on stable parts.

Key point

Motion decides whether area scan is safe.

If the part is stopped, indexed or frozen by short exposure, area scan is usually simpler. If the part moves continuously, line scan or stronger lighting may be needed.

Key point

Resolution must be tied to the smallest feature.

A 5MP camera is not automatically better than a 2MP camera. The useful number is pixel size on the part after FOV, lens and working distance are known.

Selection framework

Use this guide as a pre-RFQ decision filter, not as a part-number shortcut.

Machine vision selection is usually stable when the project starts from the inspection condition instead of a catalog model. Before requesting a quote, define what must be detected or measured, how the part moves, what surface behavior affects contrast and which factory constraint cannot change.

For area scan camera explained, the engineering team should translate the requirement into testable inputs: sample images, target tolerance, line speed, field of view, working distance, mounting envelope and the current failure mode. That gives the factory enough evidence to map the request to camera, lighting, optics, reader or 3D routes.

Decision matrix

Three checks before locking the route.

01

Best fit

Indexed parts, robot pickup, assembly checks and snapshots.

02

Main limit

Large moving webs can require too many pixels or too much light.

03

Key math

FOV divided by usable pixels gives approximate pixel size.

Comparison table

Use these data points to turn the concept into an RFQ-ready decision.

Factor	Practical rule	RFQ impact
Best fit	Indexed parts, robot pickup, assembly checks and snapshots.	Send part size and expected stop or motion condition.
Main limit	Large moving webs can require too many pixels or too much light.	Check line-scan route if target is continuous.
Key math	FOV divided by usable pixels gives approximate pixel size.	Send feature size and tolerance with FOV.

Common mistakes

Problems that slow down selection.

Selecting by model number before the inspection target is measurable.
Treating lighting as an accessory instead of the main contrast-control tool.
Ignoring fixture stability, part variation and operator maintenance workflow.

Factory handoff

What Deyi Vision reviews after receiving the project details.

The factory route review starts by checking whether the image can be made stable with lighting and fixture control. Then the camera, lens, reader or 3D sensor route is sized against speed, resolution, interface and installation constraints.

If you already have a Keyence, Cognex, Basler, OPT, LMI, Hikrobot or barcode-reader reference, include it as a benchmark. Deyi Vision uses the reference to understand the application class; final selection still depends on real samples and production limits.

Guide to RFQ

Have a real part, sample image or production constraint?

Use the guide to frame the question, then send the details so engineering can recommend a route.

Request engineering RFQ

Guide FAQ

Questions related to area scan camera explained.

Ask engineering

What is an area scan camera?

An area scan camera captures a full 2D image in one frame, similar in structure to a standard digital image sensor but designed for industrial control.

When should I choose area scan instead of line scan?

Choose area scan when the part can be captured as a stable snapshot and the required FOV fits the available sensor, lens and lighting route.

What data is needed to quote an area scan camera?

Provide FOV, smallest feature or tolerance, working distance, part speed, trigger method, lighting condition and sample images.
