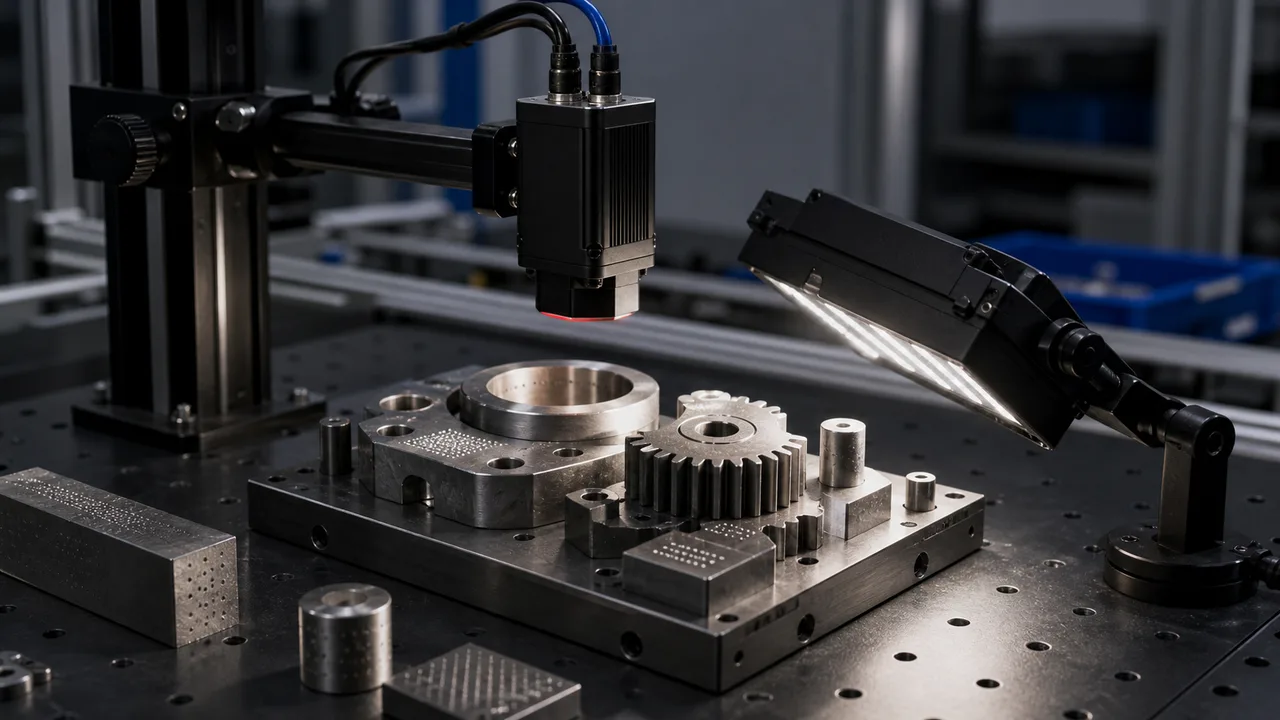

DPM code reading on reflective metal part with fixed barcode reader and low angle light

Direct answer

DPM Code Reading on Reflective Metal Parts

DPM code reading on reflective metal should be selected from real marked parts, not screenshots. Confirm mark method, module size, surface finish, read distance, light angle, line speed and target read rate before locking the reader.

Quick answer

What is the short answer for dpm code reading on reflective metal parts?

The hard part is not whether the reader supports DataMatrix. The hard part is making the direct part mark visible on reflective metal at production speed.

Quick answer

What should be confirmed before RFQ?

Lighting angle often matters more than reader brand.

Quick answer

What evidence should Deyi Vision review?

Acceptance should measure repeat read-rate and no-read workflow.

Key takeaways

What this page should help engineering teams decide.

Real marked metal samples are required for selection.
Lighting angle often matters more than reader brand.
Acceptance should measure repeat read-rate and no-read workflow.

Product families commonly involved.

Key point

Reflective metal reduces DPM contrast.

Laser etched, dot-peen or stamped codes can disappear when specular reflection aligns with the camera. The reader must be paired with lighting that reveals the module pattern across surface variation.

Key point

Mark method decides the first lighting route.

Laser marks, dot-peen marks and engraved marks produce different depth and reflection behavior. Low-angle, coaxial, dome or multi-angle lighting should be compared on the same real parts before selecting the reader.

Key point

Read distance and module size define optical margin.

Small modules at long working distance need enough pixels and focus stability. If the available mounting position is fixed, sensor, lens and illumination must be reviewed as one read station.

Key point

Production acceptance needs repeat evidence.

A DPM project should specify read-rate target, allowed no-read behavior, image saving for failures and reject or manual-review output. One successful bench read is not enough.

Selection framework

Use this guide as a pre-RFQ decision filter, not as a part-number shortcut.

Machine vision selection is usually stable when the project starts from the inspection condition instead of a catalog model. Before requesting a quote, define what must be detected or measured, how the part moves, what surface behavior affects contrast and which factory constraint cannot change.

For dpm code reading on reflective metal parts, the engineering team should translate the requirement into testable inputs: sample images, target tolerance, line speed, field of view, working distance, mounting envelope and the current failure mode. That gives the factory enough evidence to map the request to camera, lighting, optics, reader or 3D routes.

Decision matrix

Three checks before locking the route.

Laser etched code

Often needs controlled reflection angle and real finish samples.

Dot-peen code

Needs lighting that reveals dot depth without glare.

Reflective machined part

May need off-axis, dome or multi-angle lighting rather than built-in reader light.

Comparison table

Use these data points to turn the concept into an RFQ-ready decision.

Factor	Practical rule	RFQ impact
Laser etched code	Often needs controlled reflection angle and real finish samples.	Send marked parts from multiple batches.
Dot-peen code	Needs lighting that reveals dot depth without glare.	Send dot size, material and code quality examples.
Reflective machined part	May need off-axis, dome or multi-angle lighting rather than built-in reader light.	Send current no-read images and mounting limits.
Read-rate target	Test repeated reads at speed with no-read output defined.	Turns reader selection into measurable acceptance.

Application proof

Related delivery routes that make this selection decision concrete.

View all cases

Direct part mark code reading review for metal parts with camera and lighting

Metal and surface inspection

Direct Part Mark Code Reading on Metal Parts

DPM marks often fail because mark depth, surface finish and lighting angle change the apparent code contrast.

Automotive parts inspection

Automotive Metal Surface Defect Inspection

Reflective metal surfaces can hide scratches and burrs unless the lighting geometry is matched to the defect direction and part movement.

Packaging inspection

Packaging Label and Barcode Traceability

Labels and codes move quickly, vary in position and must be verified without slowing the packaging line.

Common mistakes

Problems that slow down selection.

Selecting by model number before the inspection target is measurable.
Treating lighting as an accessory instead of the main contrast-control tool.
Ignoring fixture stability, part variation and operator maintenance workflow.

Factory handoff

What Deyi Vision reviews after receiving the project details.

The factory route review starts by checking whether the image can be made stable with lighting and fixture control. Then the camera, lens, reader or 3D sensor route is sized against speed, resolution, interface and installation constraints.

If you already have a Keyence, Cognex, Basler, OPT, LMI, Hikrobot or barcode-reader reference, include it as a benchmark. Deyi Vision uses the reference to understand the application class; final selection still depends on real samples and production limits.

Guide to RFQ

Have a real part, sample image or production constraint?

Use the guide to frame the question, then send the details so engineering can recommend a route.

Request engineering RFQ

Guide FAQ

Questions related to dpm code reading on reflective metal parts.

Ask engineering

Why are DPM codes on reflective metal difficult to read?

The mark often has low contrast, and reflections from polished or machined metal can hide the module pattern from the reader.

Can integrated reader lighting handle reflective metal DPM codes?

Sometimes, but many reflective metal marks need external low-angle, coaxial, dome or multi-angle lighting matched to the mark method.

What should I send for reflective metal DPM code reading?

Send real marked parts, code type, module size, mark method, material finish, speed, read distance, mounting constraints, target read rate and no-read workflow.
